2 sets DC Universal Treadmill Console set+2display for ac inverter with wire+DHL
Couldn't load pickup availability

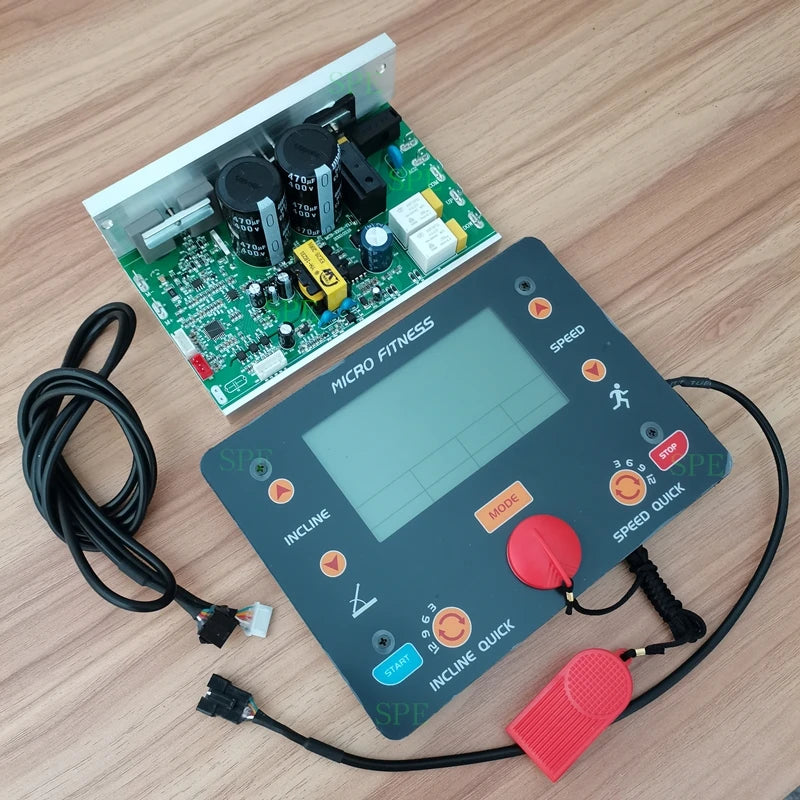

Universal Treadmill Console Diplay Lower Control Board+Top Control Treadmill Controller Sets For Treadmill Refurbishment
Package including:
1pc* Console
1pc* Lower control board
1pc* Safety key
1pc*Extension cable
Note! This controller set 100% can work without a speed sensor, So don't worry about that!
1.Condition: new
2. 3months warranty
3.Test working before shipping
4.Applied for motor power from 1.0HP-2.5HP DC motor only
5. This controller set have tow options, with INCLNE & without INCLNE. Pls check the photo below
Console
size:30cm*17cm
This type without INCLNE
This Type with INCLNE
Controller
Controller Technical Parameters:
size: 130mm * 100mm * 70mm
Input voltage:[AC] AC85V ~ 255V
Sensor mode: Magnetic sense / light perception / no sense [default no sense mode]
Features:
1: set the sensor mode by setting; set the minimum speed and maximum speed; set the output torque size; speed calibration
2: overcurrent and speed protection
3: Output short circuit or open circuit protection

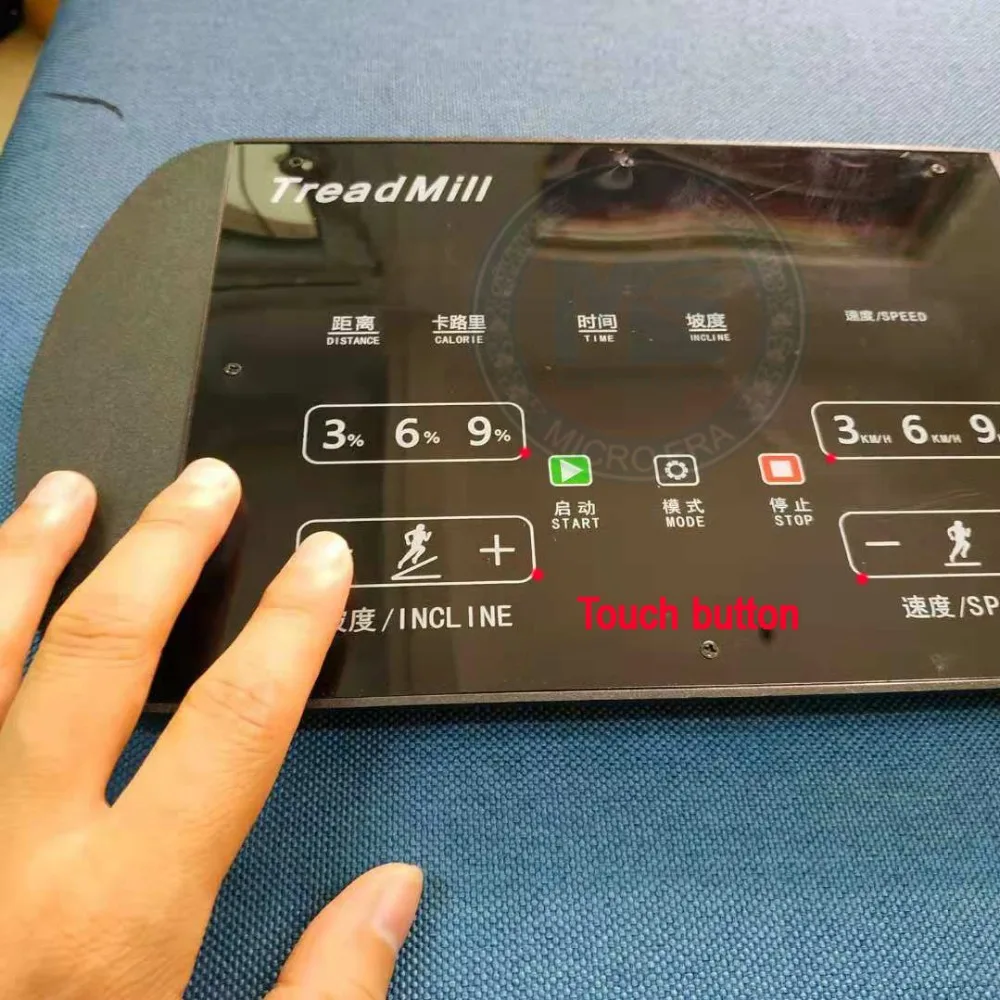

【Display:】 digital tube, LED display; touch button;
【Display content】: treadmill speed, exercise time, movement distance, calories and slope
【Key Function:】 start / stop key, mode setting key, speed plus or minus key, slope plus or minus key, speed shortcut key, slope shortcut key;
【Dashboard function:】 countdown mode, distance countdown mode, calorie countdown mode, motion built-in program;
【Installation:】 can be fixed with double-sided adhesive in the original shell surface; or embedded into the original treadmill instrument panel display window;
Instructions
1: press the start button, there are 3 seconds countdown, treadmill began to run;
2: press the stop button, treadmill slow down and stop
3: mode key: standby, press the mode key, enter the run mode settings;
4: After the treadmill is started, adjust the speed by speed addition or subtraction or speed shortcut keys
5: After the treadmill is started, adjust the treadmill slope by raising the plus or minus key
Error code
E1 communication failure
E2 power tube breakdown
6 The last step: put the security lock up, Finish setting.
NO |
Parameter definition |
Unit |
Defaults value |
Programming range |
101 |
Min speed |
KM/H |
1.O |
0.5~3.0 |
102 |
Max speed |
KM/H |
12.O |
3.0~16.0 |
103 |
Speed calibration |
——— |
13.5 |
1.0~20.0 |
104 |
Reservation |
——— |
——— |
——— |
105 |
Lifting mode |
——— |
10.O |
——— |
106 |
Sensor mode |
——— |
22.1 |
|
107 |
Output torque setting |
——— |
3.O |
0.5~20.0 |
108 |
——— |
——— |
——— |
——— |
109 |
——— |
——— |
——— |
——— |
Pay attention:
(1) 103 corresponds to the motor speed calibration, the greater the set value, the smaller the motor output speed;
if without sensor, 103 corresponding to the larger the value, the greater the motor output speed.
(2)105 corresponds to the lift control mode;
Ø 105 = 10.1 means can lift;
Ø 105 = 10.0 means can not lift
(3) 106 corresponds to the sensor mode;
Ø 21.9 means with light sensor
Ø 22.0 means with magnetic sensor;
Ø 22.1 means without sensor
(4) 107 corresponds to the size of the motor output torque, the greater the set value, the greater output torque.
After each setting of a parameter, be sure to click the "Start / Stop" button, to save the set parameters;
Please make sure that there is no problem with the motor before you place your order.The motor can be tested by the method shown in the picture below. If the motor running smoothly by 5# battery, that means the motor is good. If running not smoothly or do not running, it means the motor broken.
