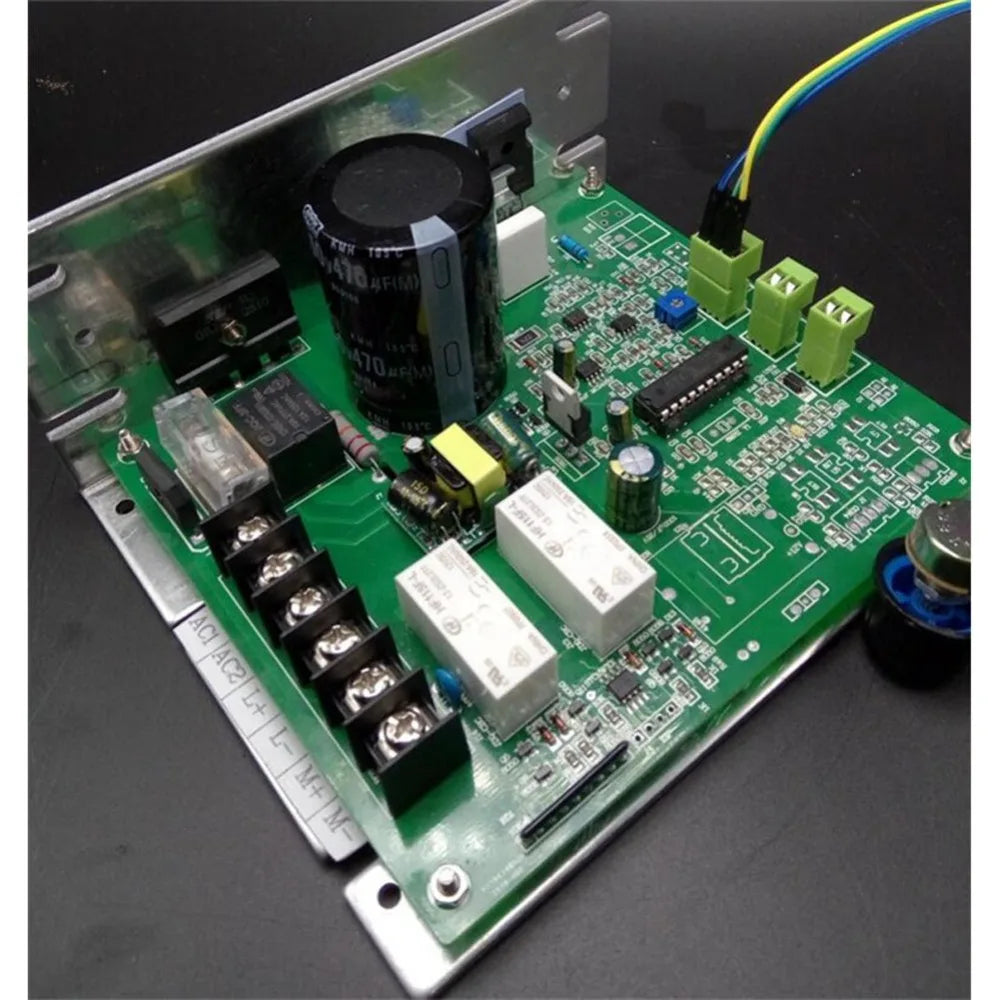

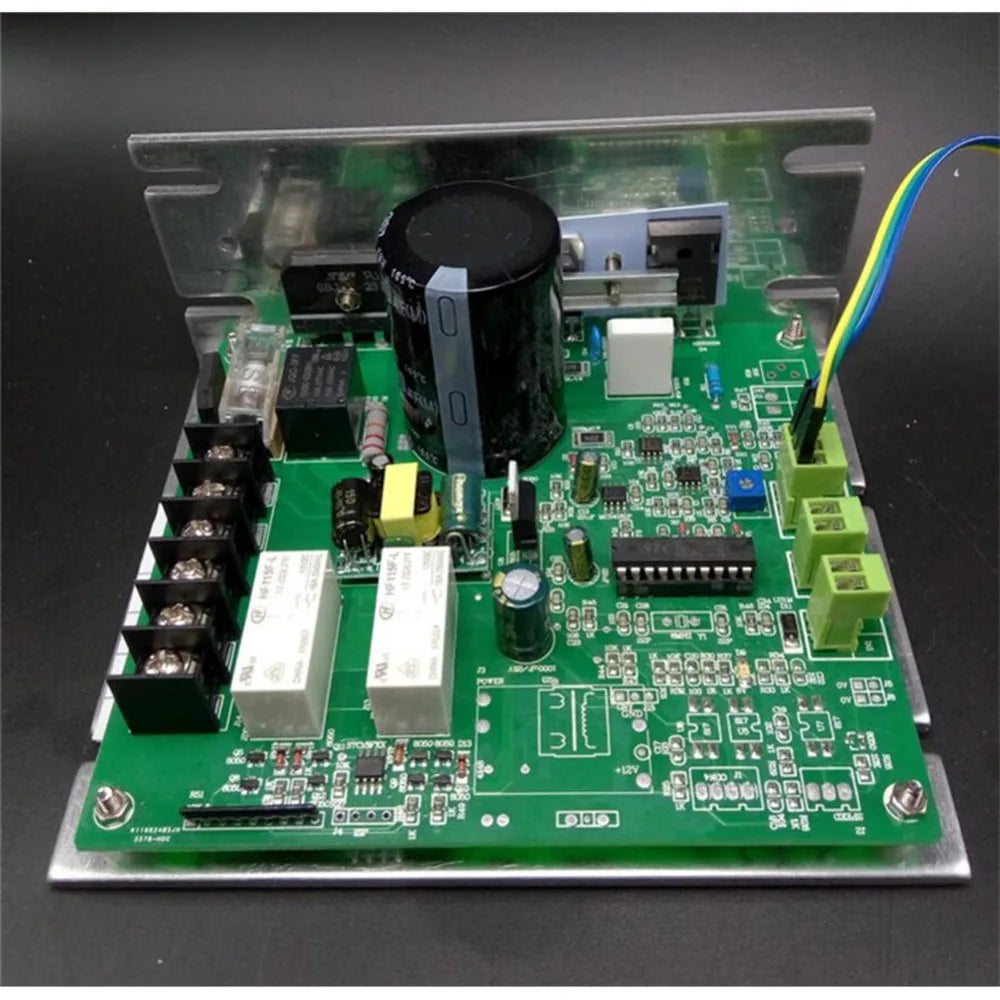

220V DC Motor Speed Switch Motor Power Board HDC-2000Z PWM Motor Governor Driver Board HDC 2000Z

220V DC Motor Speed Switch Motor Power Board HDC-2000Z PWM Motor Governor Driver Board HDC 2000Z

1.Parcel including 1pcs* power board( controller)

2. Condition, new

3. Warranty 90days

Model: DC Motor Speed Controller HDC-2000Z

Power: 50W~1800W Rated Current: 10A

Output voltage: DC (DC) 0~240V [Maximum output voltage adjustable]

Input voltage: AC (AC) 85V~265V

Speed range: 1-9999 rpm [actual speed is determined by the motor]

Dimensions: Length: 170mm * Width: 155mm * Height 70mm (This product warranty for one year / artificially insecure)

Applicable motor: DC36V/48V/60V/72V/90V/100V/110V/180V/200V/220V DC motor

DC-2000Z DC motor speed controller is suitable for DC brush motor adjustment within 1800W

Widely used in moving machinery, lifting machinery packaging machinery, food machinery, textile machinery, printing machinery, paper machinery machinery, paper making machinery, semi-alloy manufacturing equipment, test machinery, optical related machinery, medical machinery, sports machinery, wire telegraphy Manufacturing Machinery, Wood Processing Machinery, Metal Processing Machinery, Hot Melt Adhesive Machines, Communication Equipment, Financial Professional Equipment, Drum Machines, Metering Pumps, Sharpening Machines, Drainers, Mooncake Machinery, Assembly Lines, Conveying Machinery, Packaging Machinery, etc.

Core technical advantages

Using SMT technology, small size

■ Good follow-up, fast response

■ Wide speed ratio and hard mechanical characteristics

■ Double closed-loop P I regulation (voltage, current)

■ Current setting and current limit protection (continuous operation setting current)

■Low speed output torque

■Overcurrent protection function

■Soft start, soft stop setting function

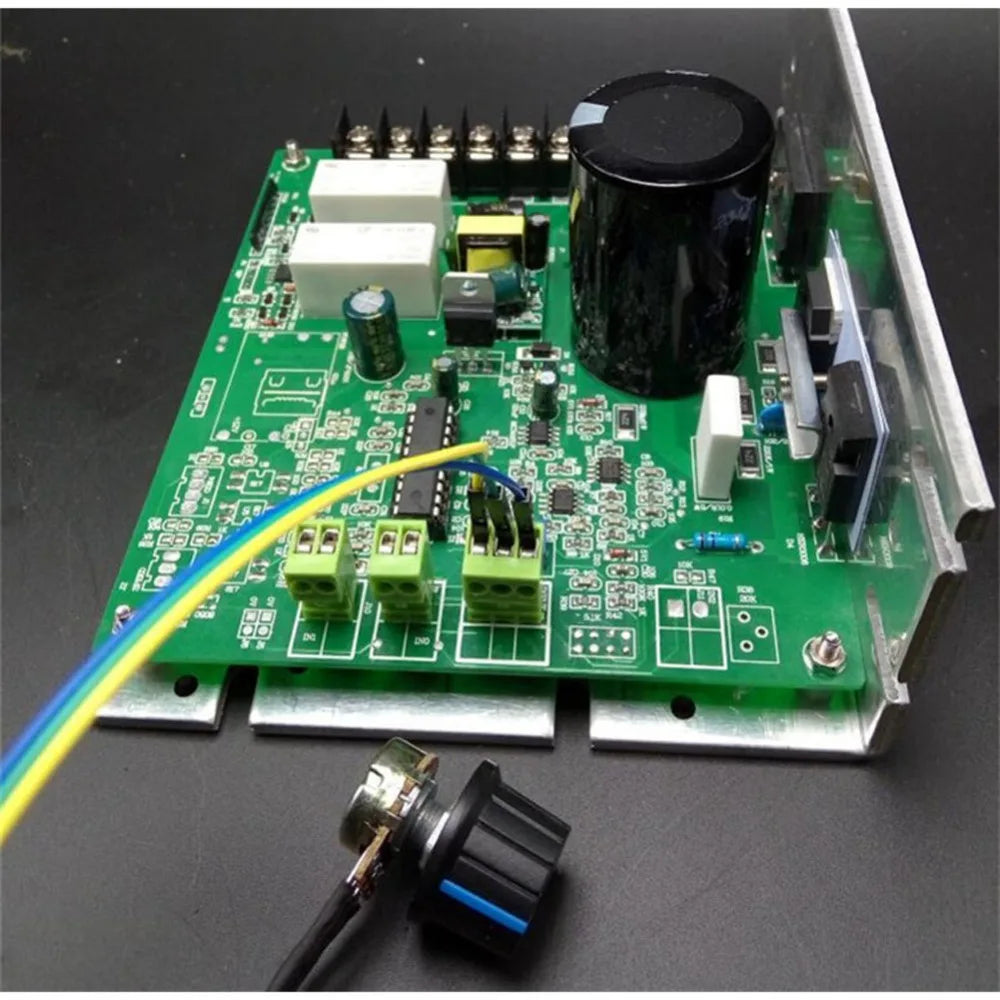

■ A variety of control options, standard signal input 0-5V or rotary potentiometer control drive speed
