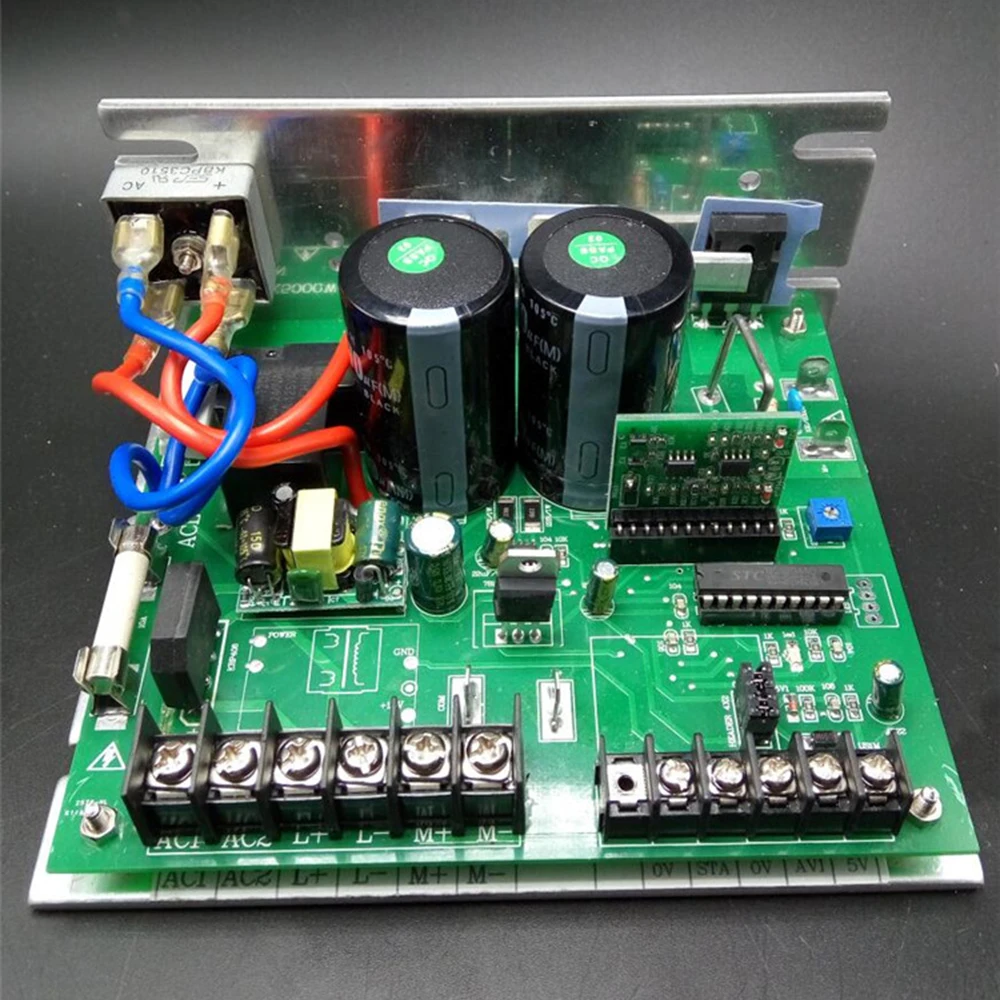

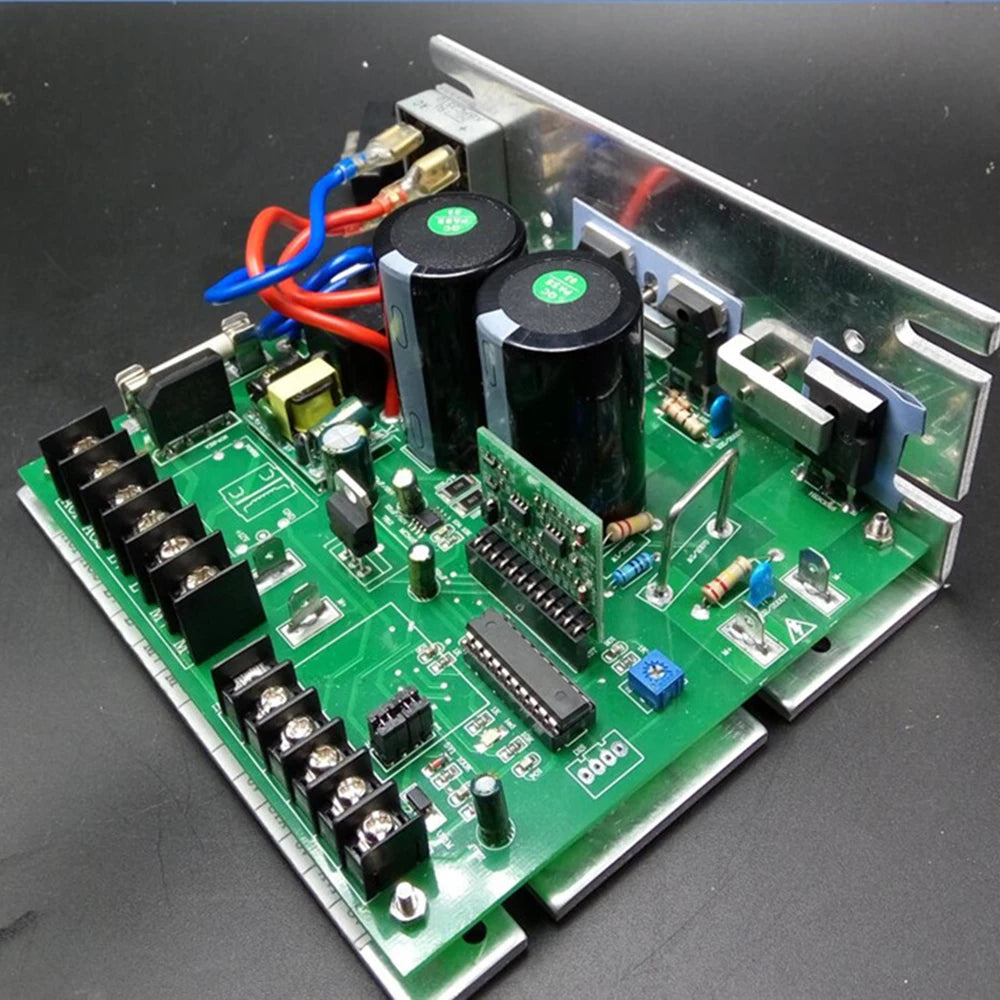

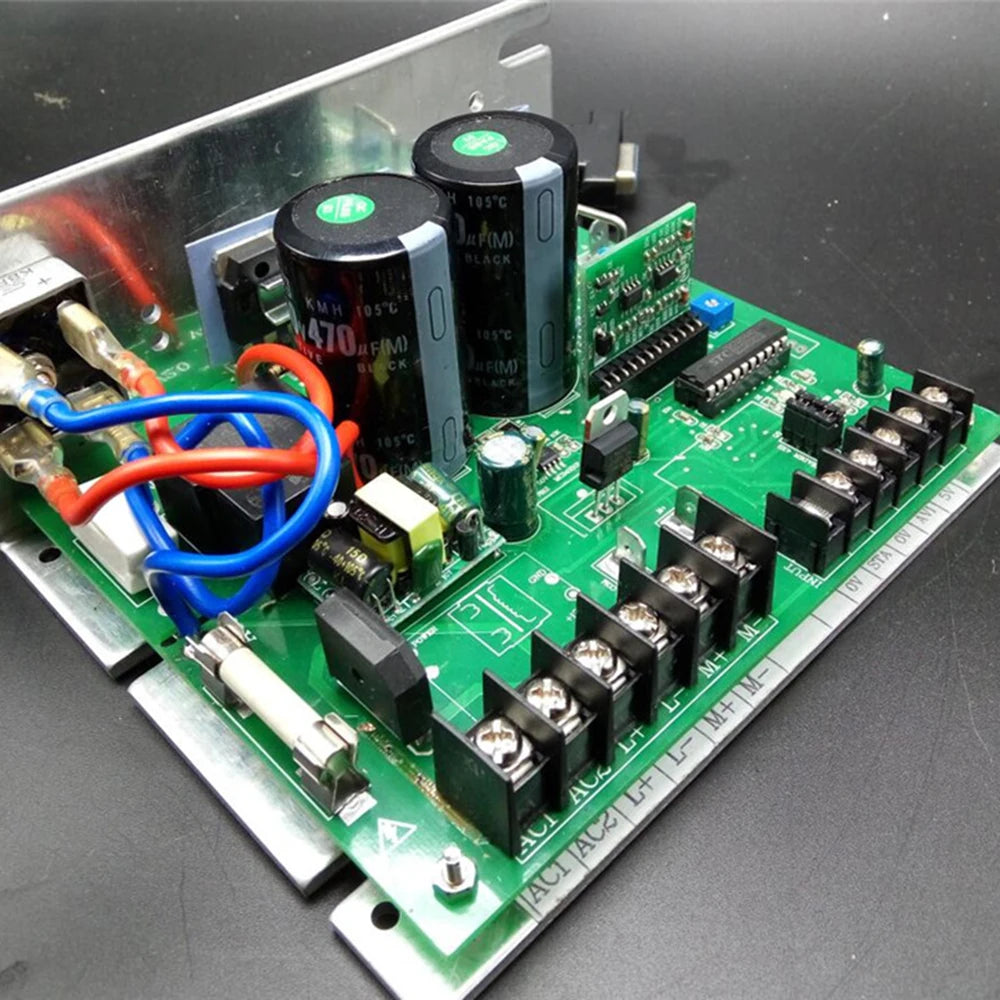

4000W High-power DC Motor Speed Controller for 180V Motor Stepless Speed Regulation Switch DC Motor Drive Board HDC-4000W

4000W High-power DC Motor Speed Controller for 180V Motor Stepless Speed Regulation Switch DC Motor Power Board HDC-4000W

If you do not sure how to connect the controller pls check the video for reference. thank you

https://youtu.be/LIRv9FK9_70

1 Product details:

(1) Part Number:HDC-4000W
(2) Parcel including: 1pcs* control board
(3) Condition:new and test working before shipping
(4) Warranty 90days
(5) Power: 3500W Rated current: 20A
(6) Output voltage: DC (DC) 0~240V [Maximum output voltage adjustable]
(7) Input voltage: AC (AC) 85V~265V
(8) Speed range: 1-9999 rpm [actual speed is determined by the motor]
(9) Dimensions: Length: 170mm * Width: 155mm * Height 70mm (This product warranty for one year / artificially insecure)
(10) Applicable motor: DC36V/48V/60V/72V/90V/100V/110V/180V/200V/220V DC motor

Use

HDC-4000W DC motor speed controller is suitable for DC brush motor adjustment up to 3500W. It has the advantages of wide speed range, stable operation, good mechanical performance, and strong action.

Widely used in moving machinery, lifting machinery packaging machinery, food machinery, textile machinery, printing machinery, paper machinery machinery, paper making machinery, semi-alloy manufacturing equipment, test machinery, optical related machinery, medical machinery, sports machinery, wire telegraphy Manufacturing Machinery, Wood Processing Machinery, Metal Processing Machinery, Hot Melt Adhesive Machines, Communication Equipment, Financial Professional Equipment, Drum Machines, Metering Pumps, Sharpening Machines, Drainers, Mooncake Machinery, Assembly Lines, Conveying Machinery, Packaging Machinery, etc.

Core technical advantages

Using SMT technology, small size
■ Good follow-up, fast response
■ Wide speed ratio and hard mechanical characteristics
■ Double closed-loop P I regulation (voltage, current)
■ Current setting and current limit protection (continuous operation setting current)
■Low speed output torque
■Overcurrent protection function
■Soft start, soft stop setting function

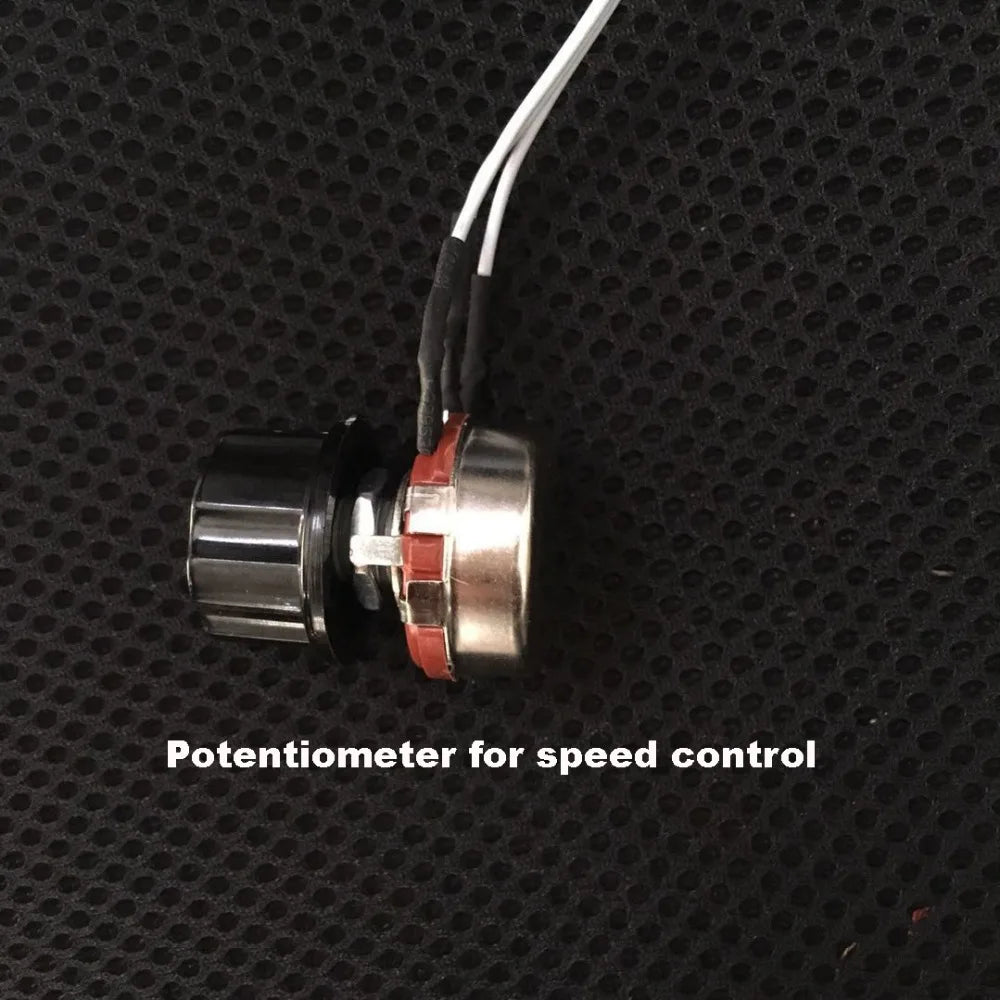

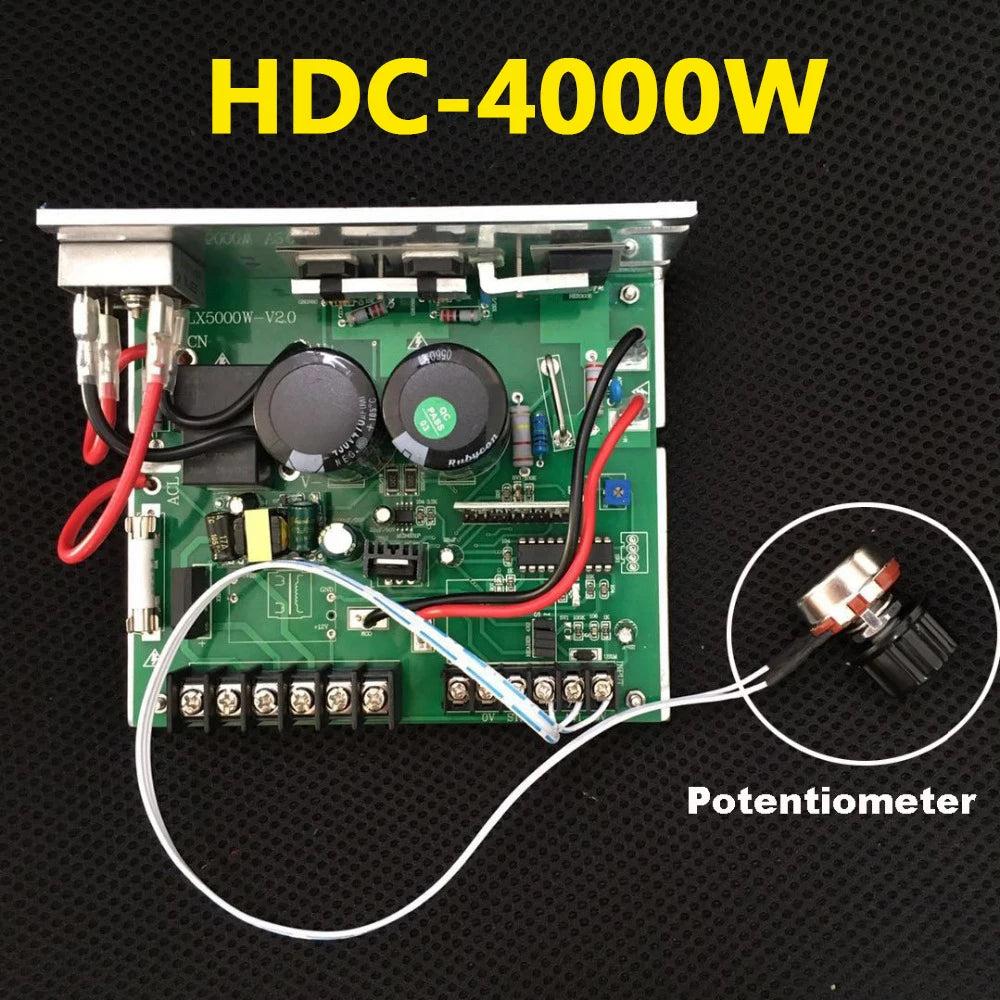

■ A variety of control options, standard signal input 0-5V or rotary potentiometer control drive speed
