AL568AR Treadmill Control Board Treadmill Motor Controller Power Supply Unit Motor Driver

AL568AR AL518C AL718C Treadmill Circuit Board for JASON110817 Treadmill Motor Controller Power Supply Board Control Board

Package include

New Version Controller AL568AR*1PCS

Specification

1.Part number: AL568AR
2.Application: for JASON110817 Treadmill
3.New version 110V/220V
4.Condition:New

Warranty

90 days warranty.

Confirm Right Board

Pls noted, this controller have serveral types. Pls send us a photo of your original/old board for confirmation before place an order, thank you!

How to determine the failed controller

E01: communication failure, sensor failure;

E02: you'd better test the motor first to check if there is any problem with motor, if motor work normal, then need to change controller.

E03: Sensor fault; treadmill will run few seconds then show E03;

E04: usually over-current fault, this situation is generally burned components on the controller;

E08: May be lift motor control fault.

Make sure the motor run normal by testing

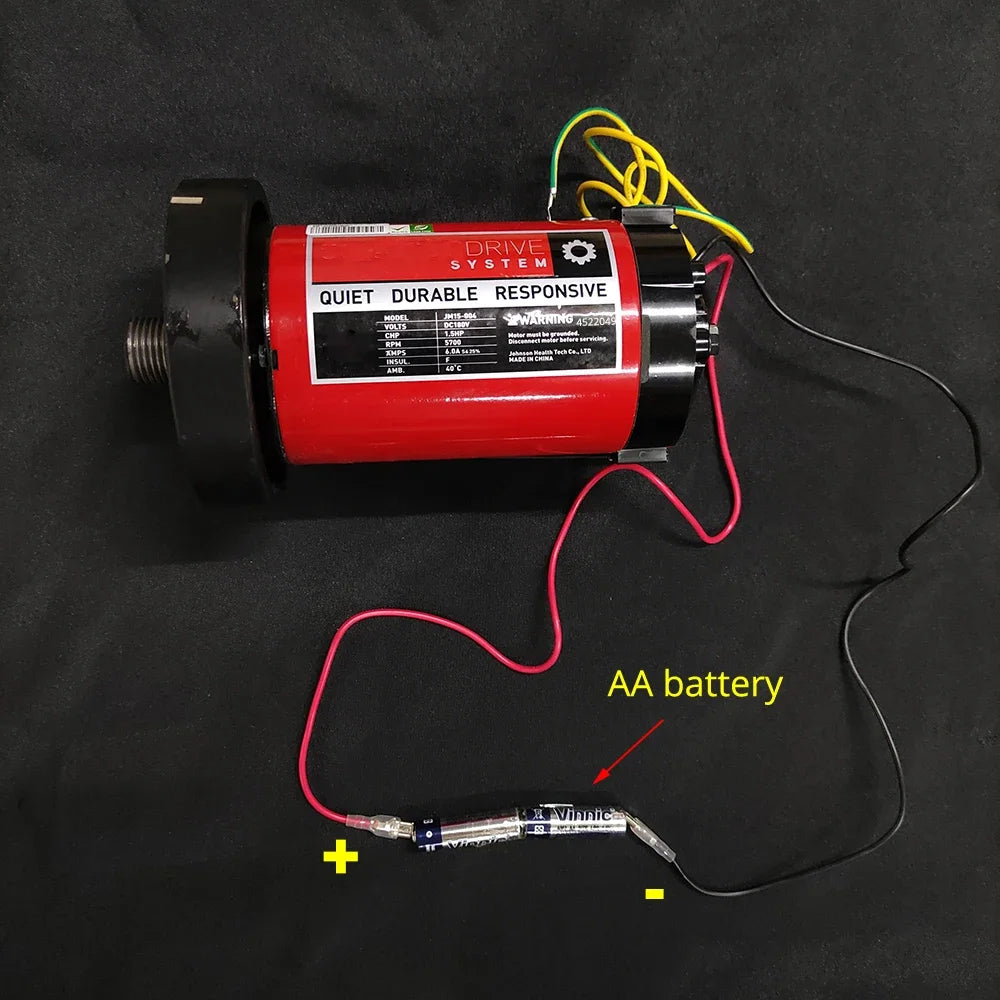

Please make sure that there is no problem with the motor before you place your order.The motor can be tested by the method shown in the picture below. If the motor running smoothly by 2*5# battery, that means the motor is good. If running not smooth or do not run, it means motor broken.

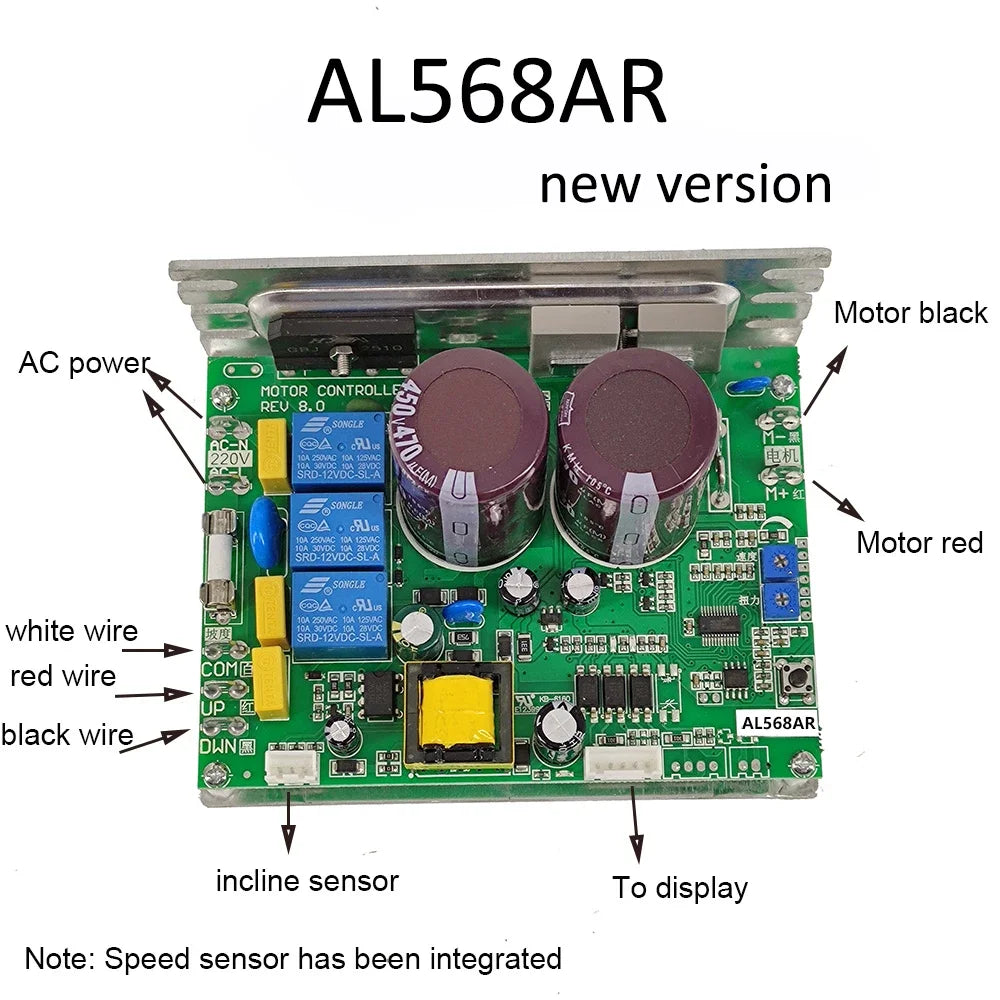

Real photos:

Good package
