DK10-B01 Treadmill Speed Controller DK-B01-A6 Ower Control Board Mainboard For BH AEON

DK10-B01 treadmill Speed controller DK-B01-A6 ower control board mainboard for BH AEON

1 Product details:

(1) Part Number: DK10-B01 / DK12-B01 / DK-B01-A6
(2) Parcel including: 1pcs* control board
(3) Condition: new with heatsink  and Test working before shipping
(4) Warranty 90days
(5) For 110V/220V can use

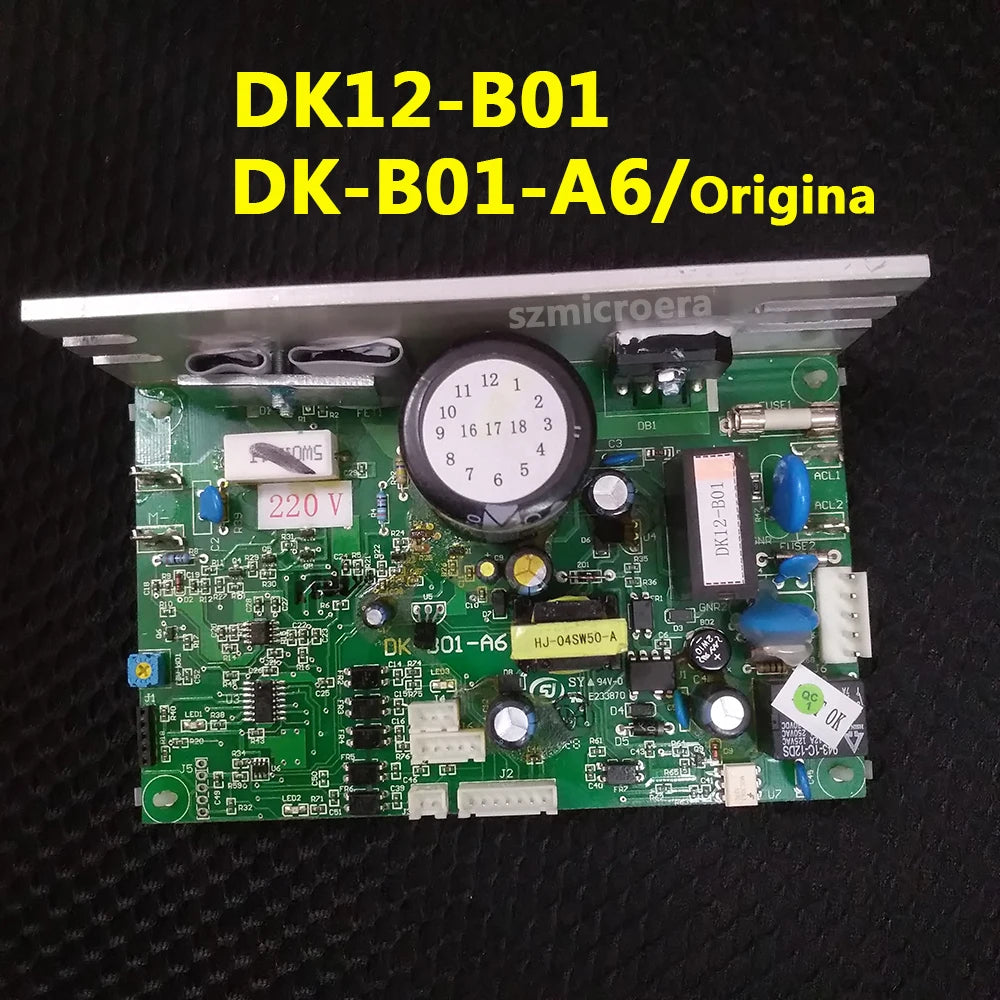

Original Controller ↓
For DK10-B01 / DK12-B01 / DK-B01-A6 110-220V

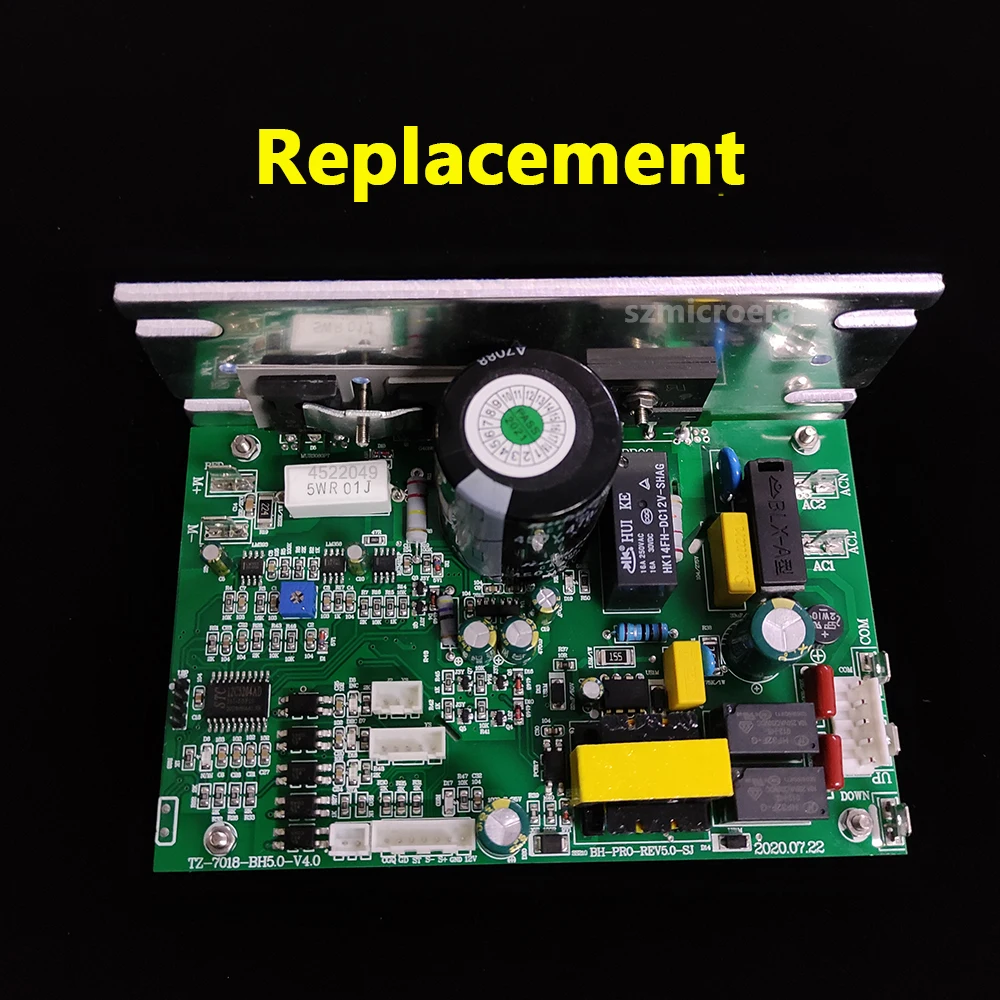

Replacement Controller ↓

2 How to determine the failed controller:

E01: communication failure, sensor failure;

E02: you'd better test the motor first to check if there is any problem with motor, if motor work normal, then need to change controller.

E03: Sensor fault; treadmill will run few seconds then show E03;

E04: usually over-current fault, this situation is generally burned components on the controller;

E08: May be lift motor control fault.

3 Test motor before order

Please make sure that there is no problem with the motor before you place your order.The motor can be tested by the method shown in the picture below. If the motor running smoothly by 5# battery, that means the motor is good. If running not smoothly or do not running, it means the motor broken.
