Excitation Motor Driver Permanent Magnet Speed Control Board DC Motor Speed Controller Power Board
Introduce
HDC-2000W is a special governor for high voltage and high power DC motors.

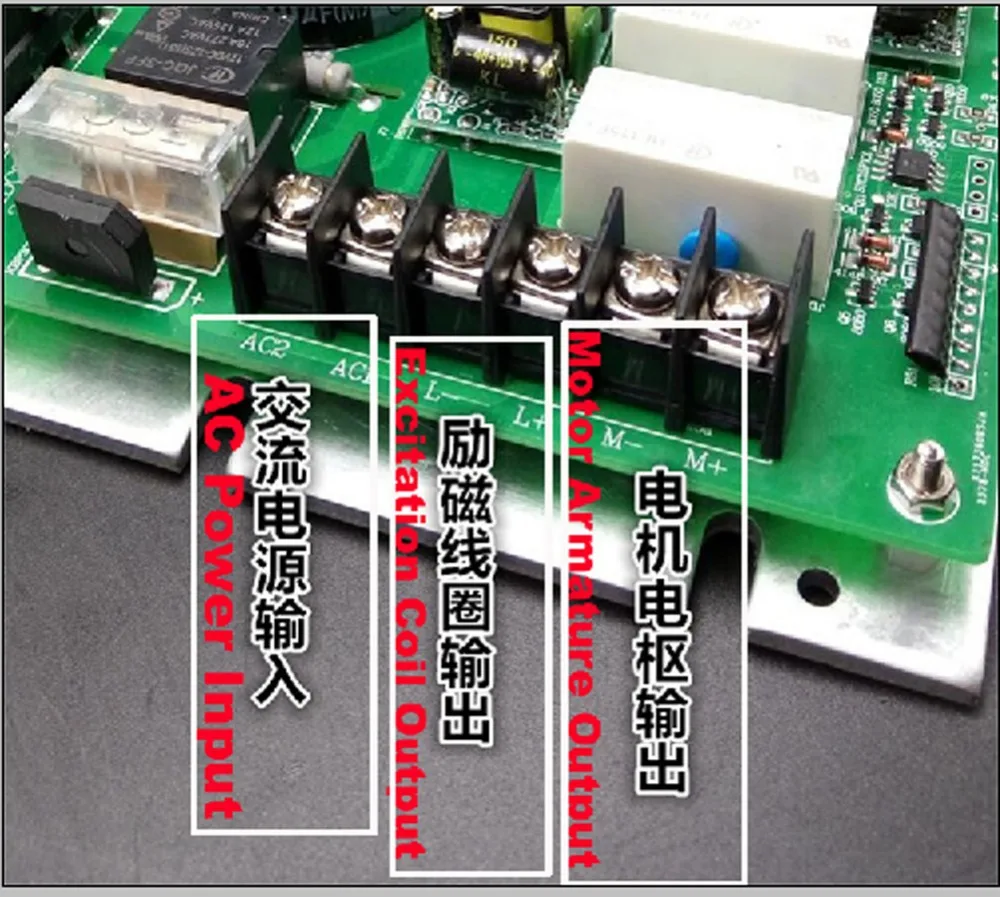

Applicable to [permanent magnet] or [excitation] brush DC motor
Model: HDC-2000W
Power: 50W~1800W Rated Current: 10A
Output voltage: DC (DC) 0~240V [Maximum output voltage adjustable]
Input voltage: AC (AC) 85V~265V
Speed range: 1-9999 rpm [actual speed is determined by the motor]
Dimensions: Length: 170mm * Width: 105mm * Height 70mm (This product warranty for one year / artificially insecure)
Applicable motor: DC36V/48V/60V/72V/90V/100V/110V/180V/200V/220V DC motor
Use
HDC-2000W DC motor speed controller is suitable for DC brush motor adjustment within 1800W. It has the advantages of wide speed range, stable operation, good mechanical performance, and strong action.
Widely used in conveying machinery, lifting machinery packaging machinery, food machinery, textile machinery, printing machinery, paper machinery machinery, paper making machinery, semi-allogenous manufacturing equipment. Determination. Analysis. Test machines, optical related machinery, medical machinery, sports machinery, Wire and cable manufacturing machinery, wood processing machinery, metal processing machinery, hot melt adhesive machines, communications equipment, financial professional equipment, roller machines, metering pumps, grinding machines, rowers, moon cake machinery, assembly lines, conveyor machinery, packaging machinery
Core technical advantages
■ Adopt SMT technology, small size
■ Good follow-up, fast response
■ Wide speed ratio and hard mechanical characteristics
■ Double closed-loop P I regulation (voltage, current)
■ Current setting and current limit protection (continuous operation setting current)
■Low speed output torque
■Overcurrent protection function
■Quick stop function
■Maximum speed limit setting
■ Soft start, soft stop setting function
■ Speed mode, torque mode selection, speed mode, need to increase speed sensor

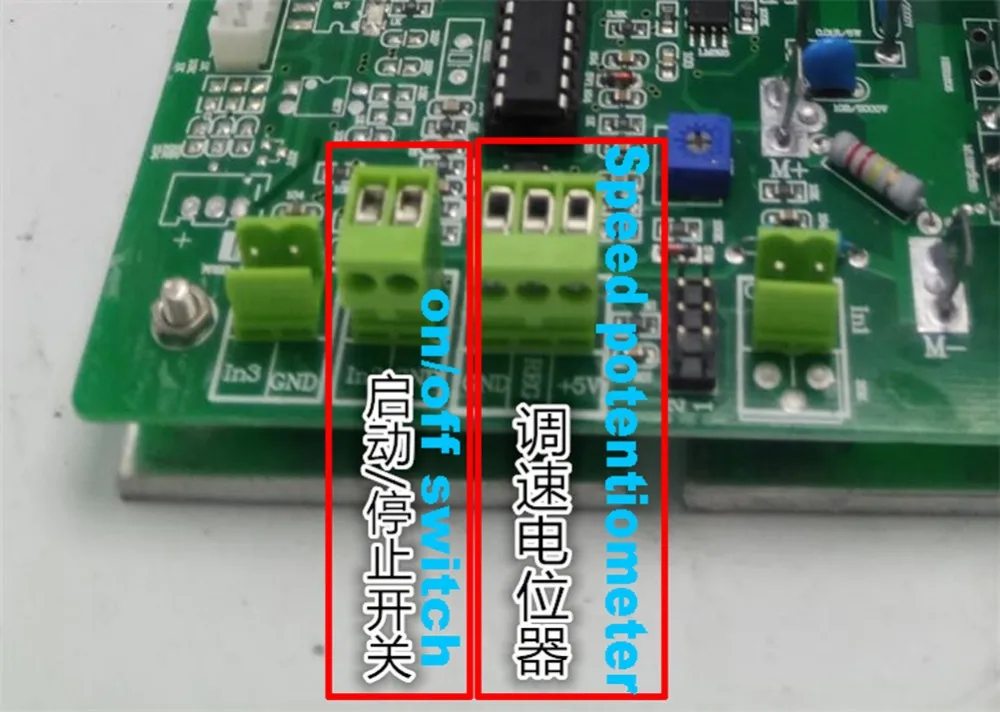

■ A variety of control options, standard signal input 0-5V or rotary potentiometer control drive speed
■ Modbus protocol online control can be achieved through RS232 or 485 communication interface with PC, PLC, master control equipment
1. Option
Choose <controller with case> Parcel including 1pc* power board( controller) 1pcs case( with display& Potentiometer)
Choose <controller> parcel including 1pcs power board( controller)+1pc Potentiometer
2. Condition, new
3. Warranty 90days
Pls check the photo before place an order

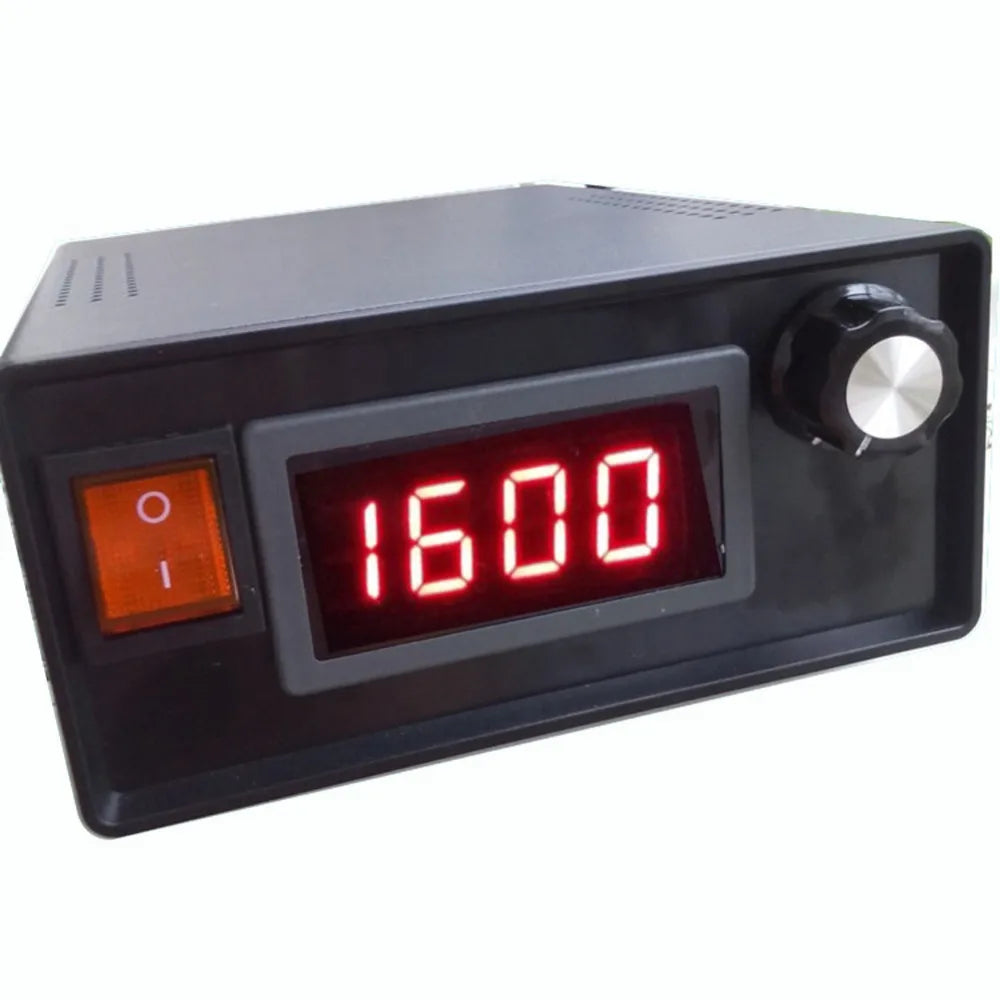

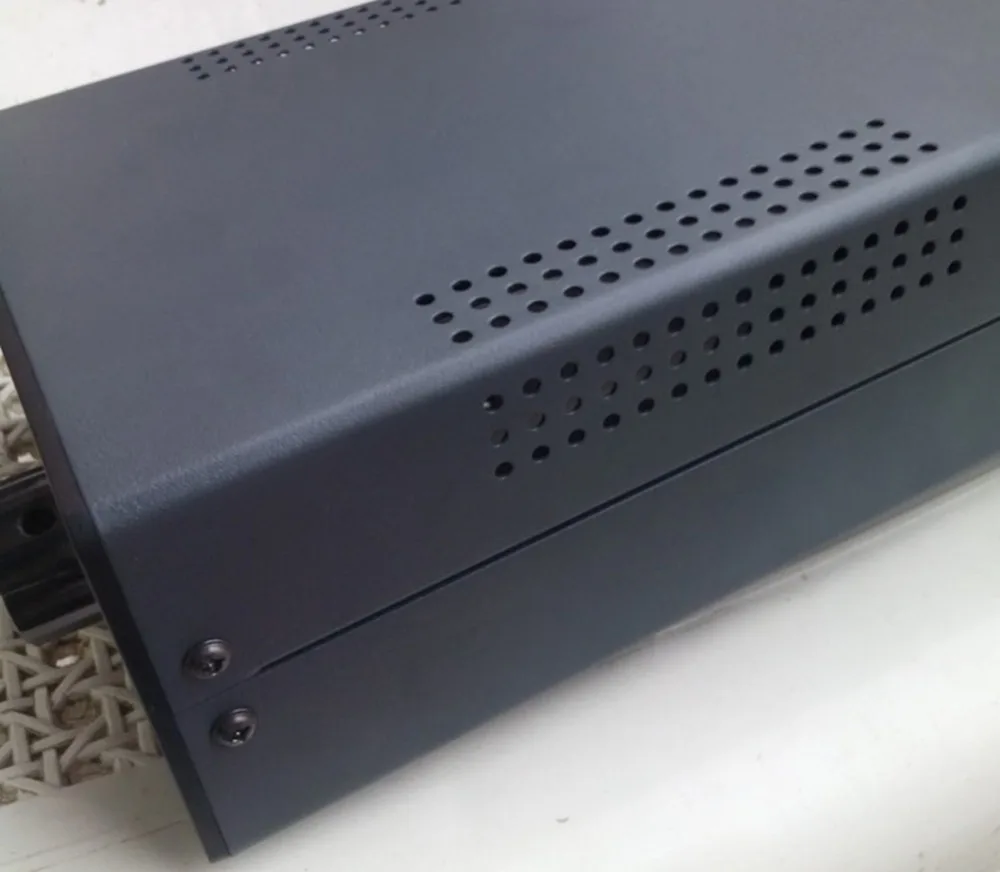

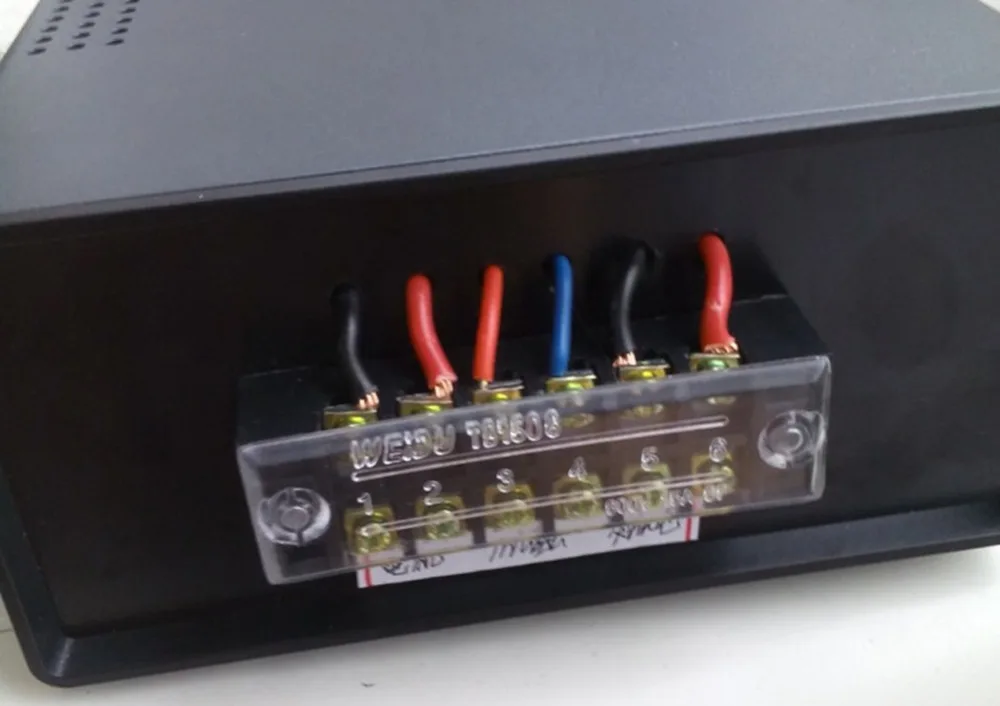

Controller with case is this one

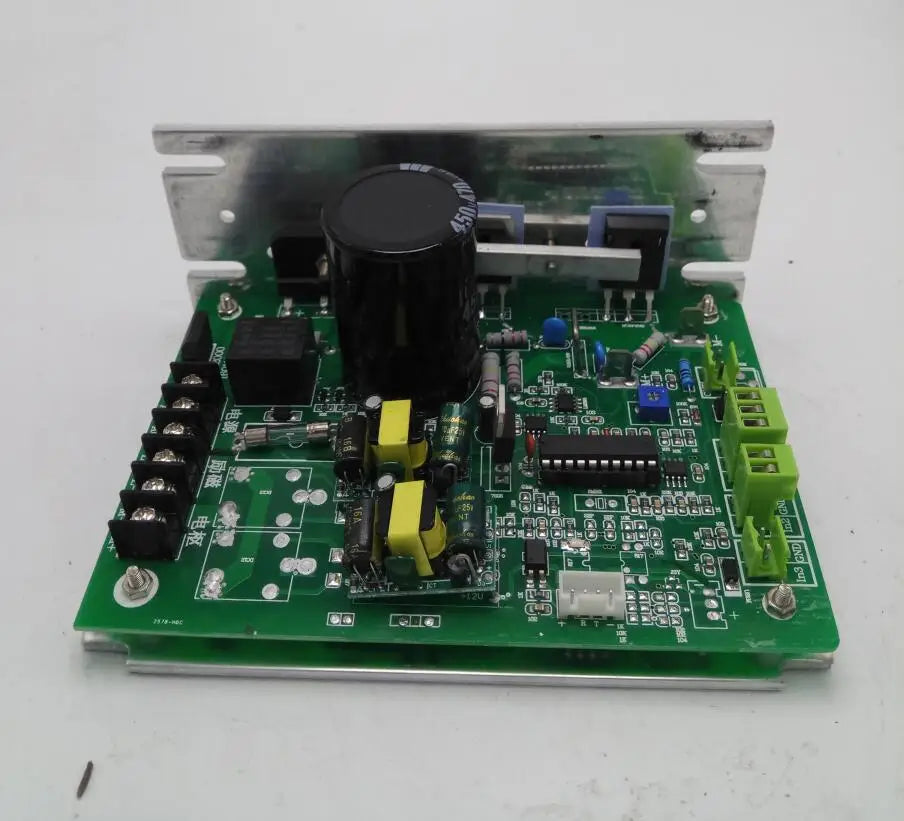

The controller will come to you with heatsink
