General use Universal Treadmill Circuit board Treadmill Console display Treadmill control board controller 1HP-2HP/4.0HP motor

General use Universal Treadmill Circuit board Treadmill Console display Treadmill control board controller 1HP-2HP/4.0HP motor

This control kit can use for 1~4hp DC motor speed control, if you can't find suitable parts to repair your treadmill, choose this kit, it will bring your treadmilll back to running. please check more details via below description, don't hesitate to contact us if you have any questions.

Package include:

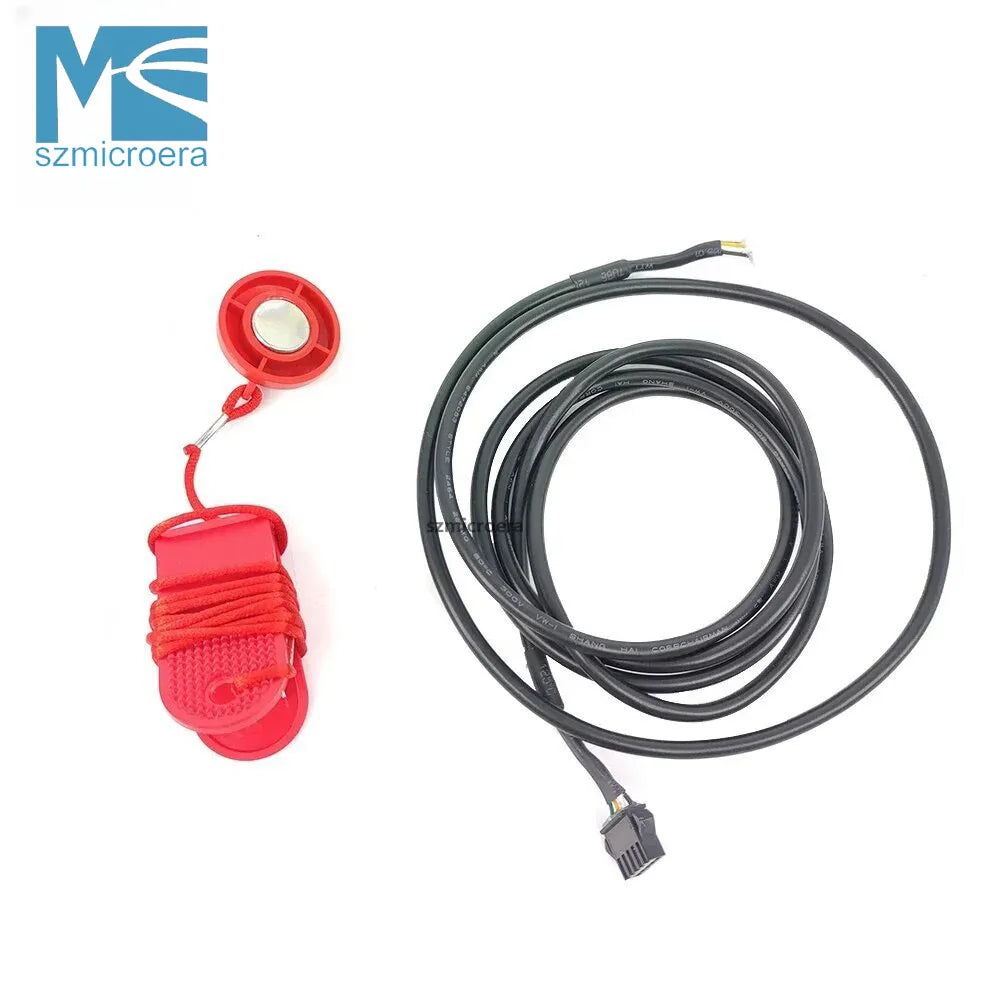

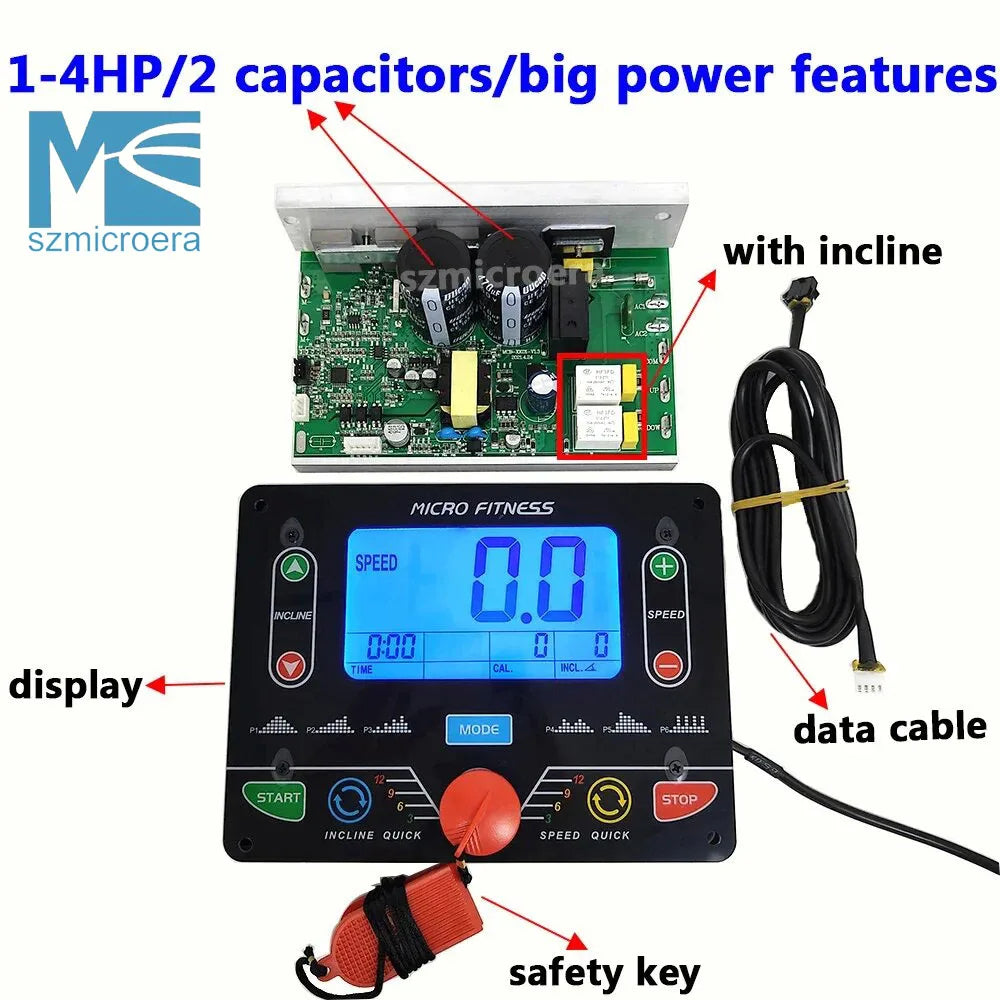

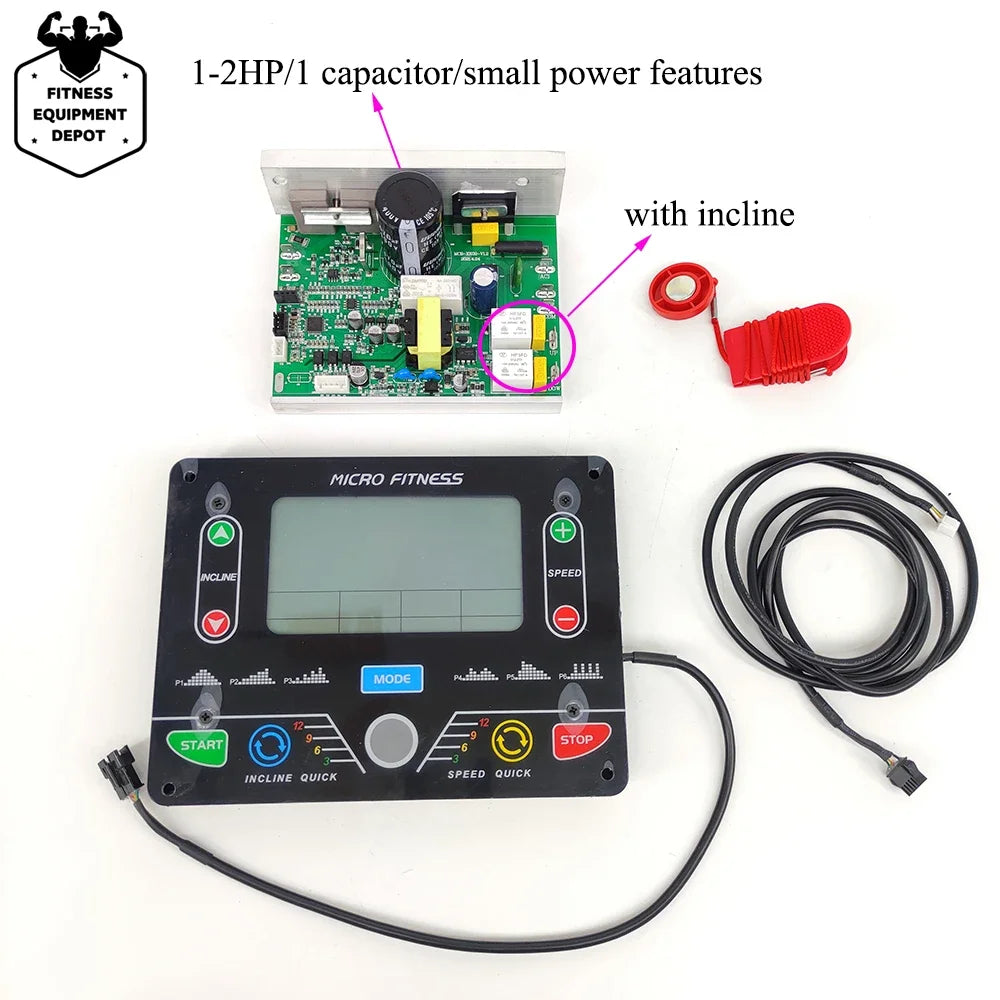

1 pcs controller + 1 pcs display + 1 pcs safety key + 1 pcs data cable.

Before order

Please note: This control set can use for Reebok, Johnson, BH and many other treadmills. ( Exclude Icon brand treadmill).

1 Before order, please make sure 2 things
a> your treadmill incline motor is this type, with 3 wires and 3pins incline sensor.

b> make sure the DC motor functioning ( check below step)


Use 2*5# batteries, connect to motor red cable and black, If the motor running smoothly, motor functioning.

If not, DC motor probably have issue.

2 How the Control kit works?
As below photo show,

a> we connect the DC motor & incline motor to the controller

b> we connect the console board to the controller

c> we connect the AC power cord to the controller, then the control kit can work.

Product Features

Application: For Treadmill repair

Volt: 220~240v or 100~120V

Warranty: 90 days

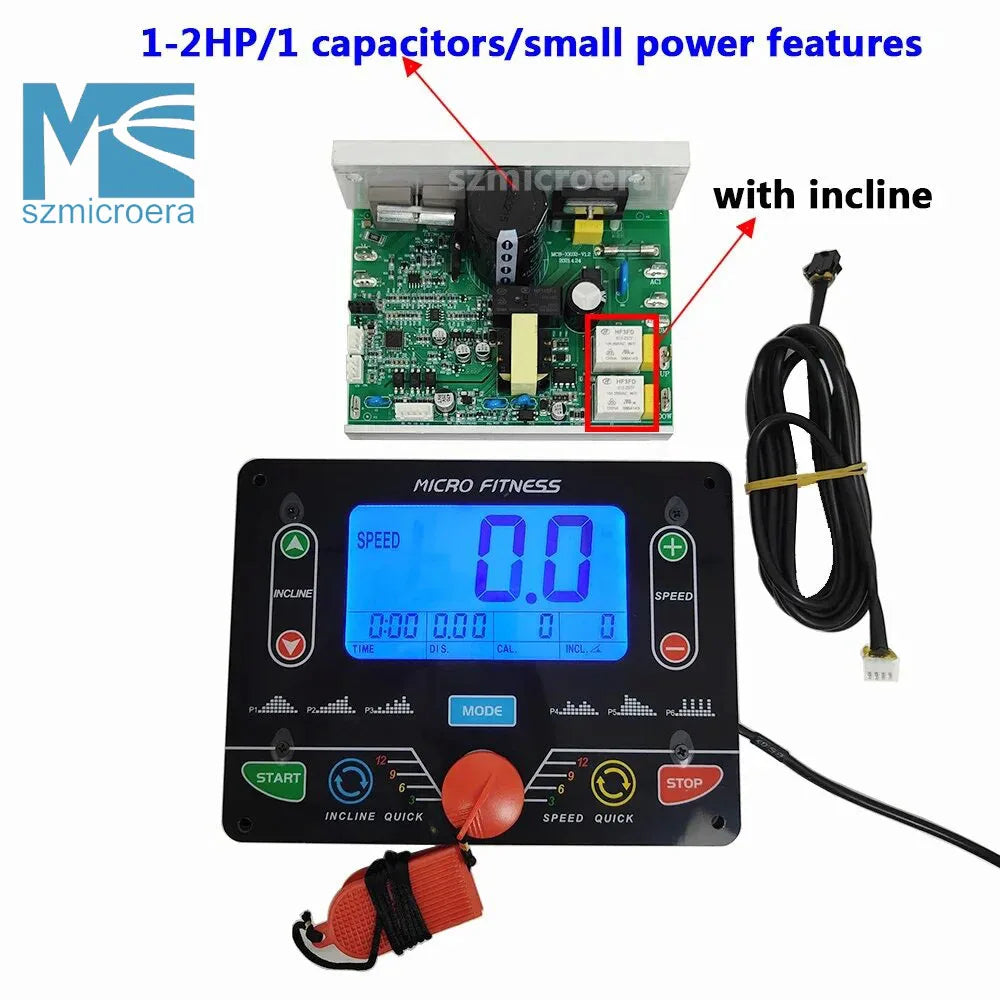

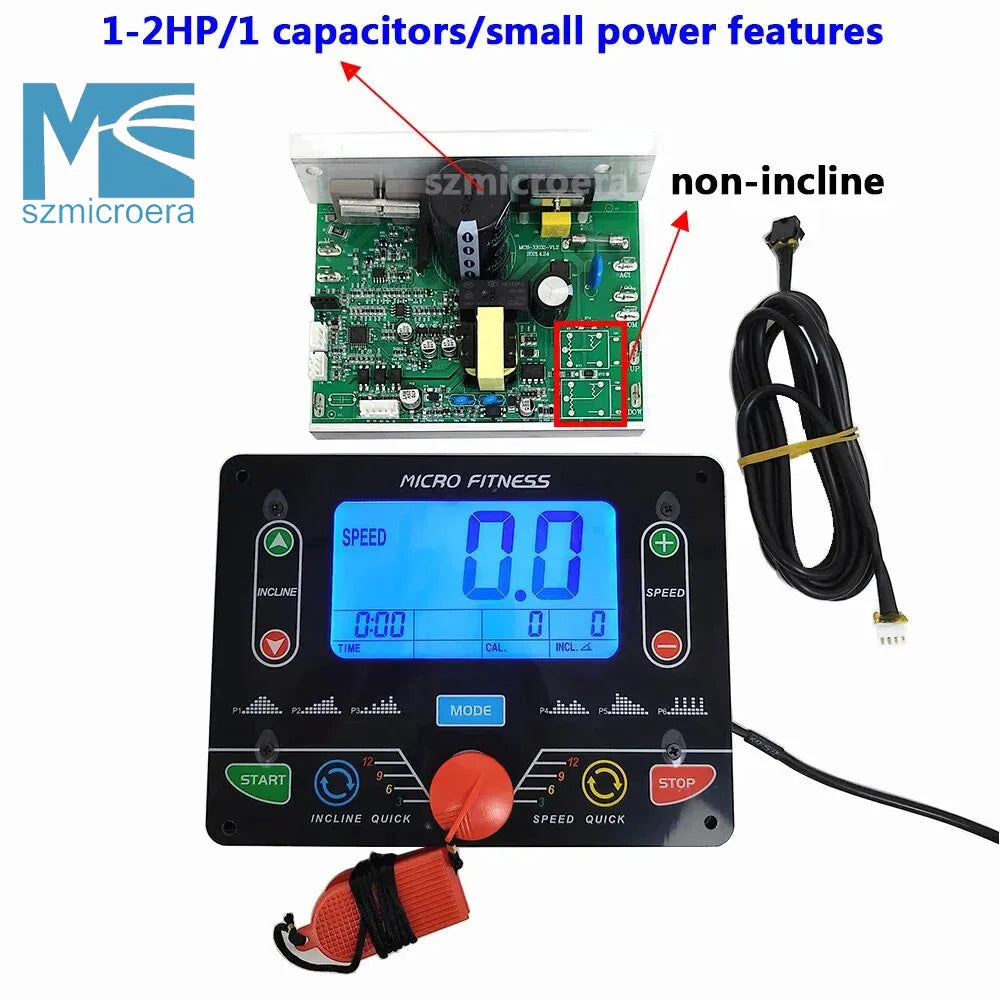

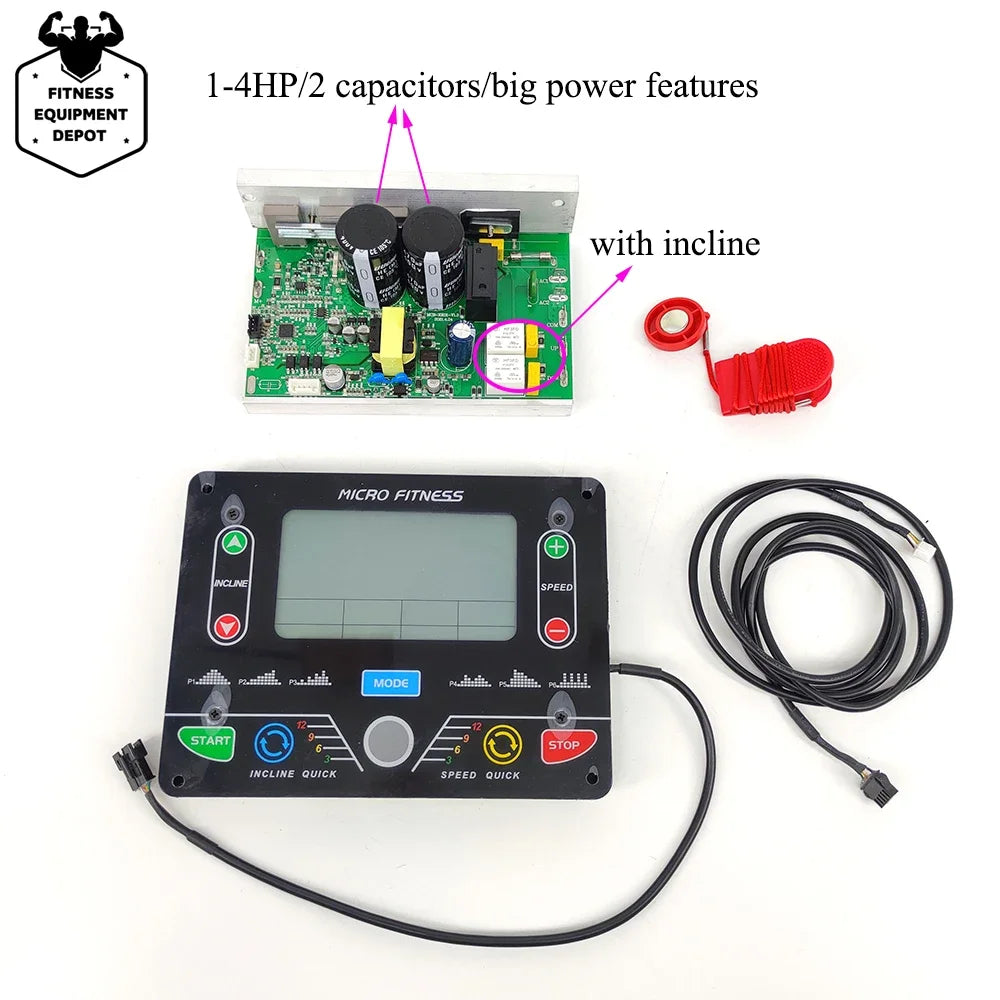

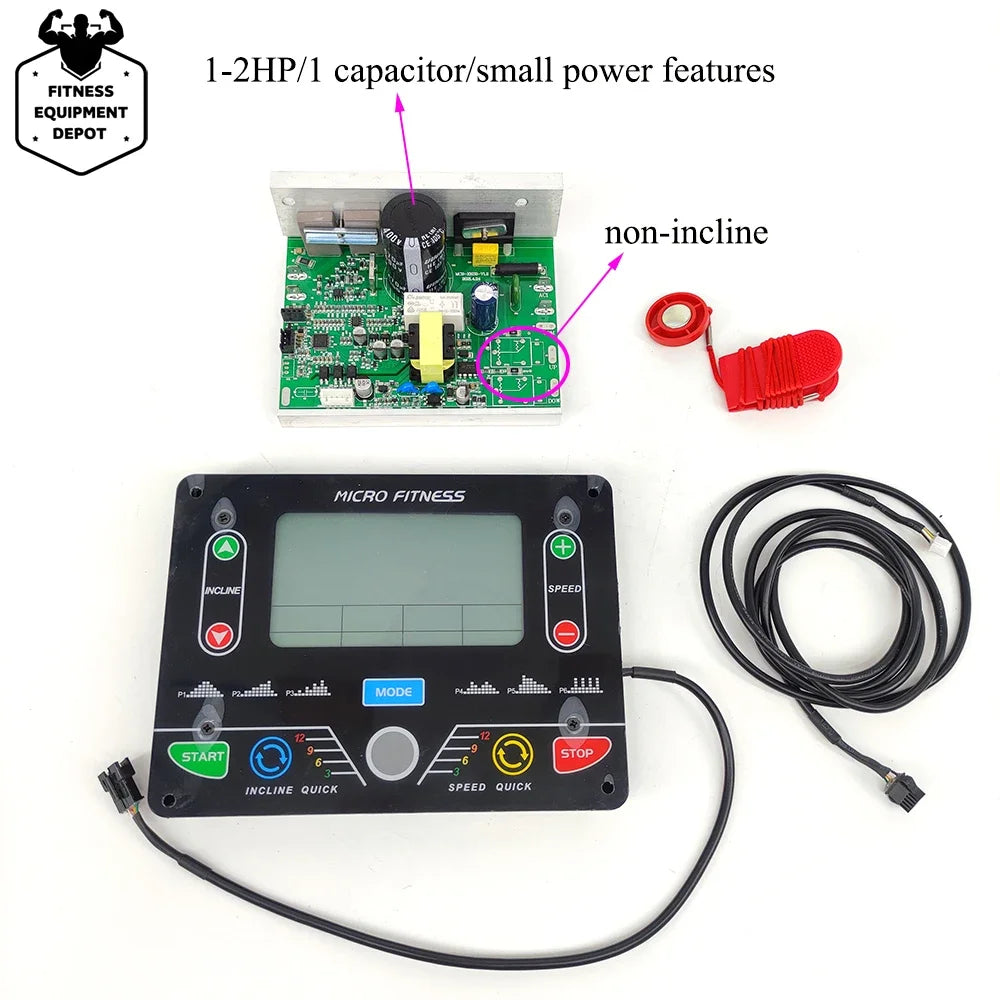

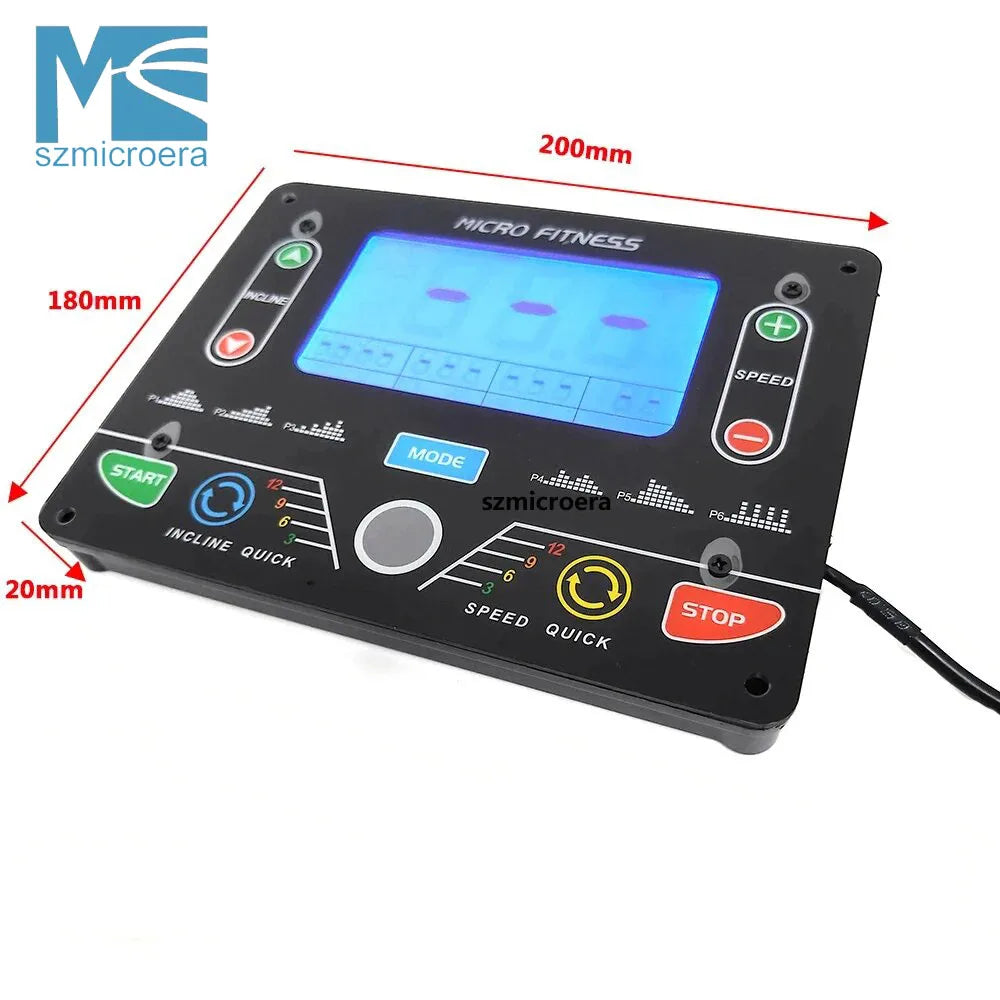

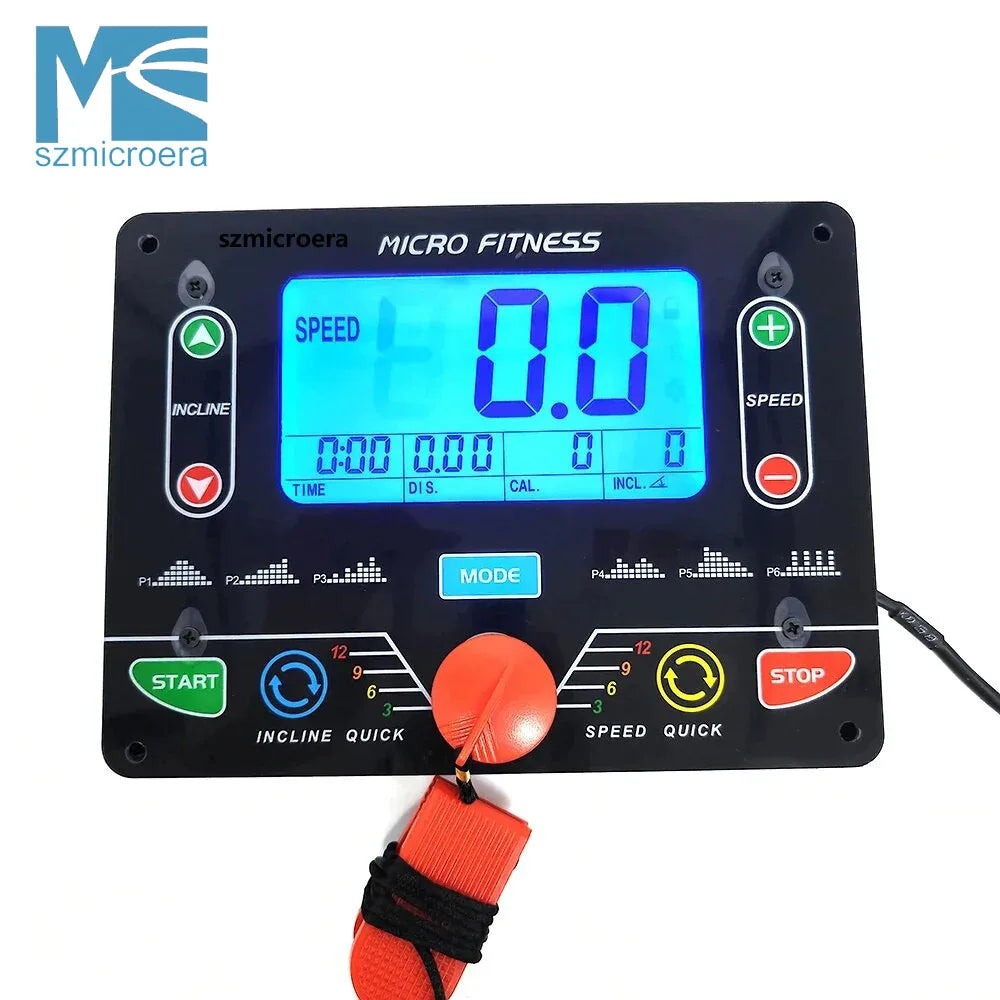

Real photos
