Liquid automatic filling controller Filling weight control machine Filling electronic scales liquid quantitative filling control

$75.03 USD
$0.00 USD $75.03 USD
Sale Sold out
Color

Liquid automatic filling controller  Filling weight control machine  Filling electronic scales

There are 3 options 01G  05G and 1G


Choose 01G, we send controller weight range from 0.1g to 999g    Unit scale 0.1g


Choose 05G, we send controller weight range from 0.5g to 2999g   Unit scale 0.5g


Choose 1G, we send controller weight range from 1g to 9999g        Unit scale 1g

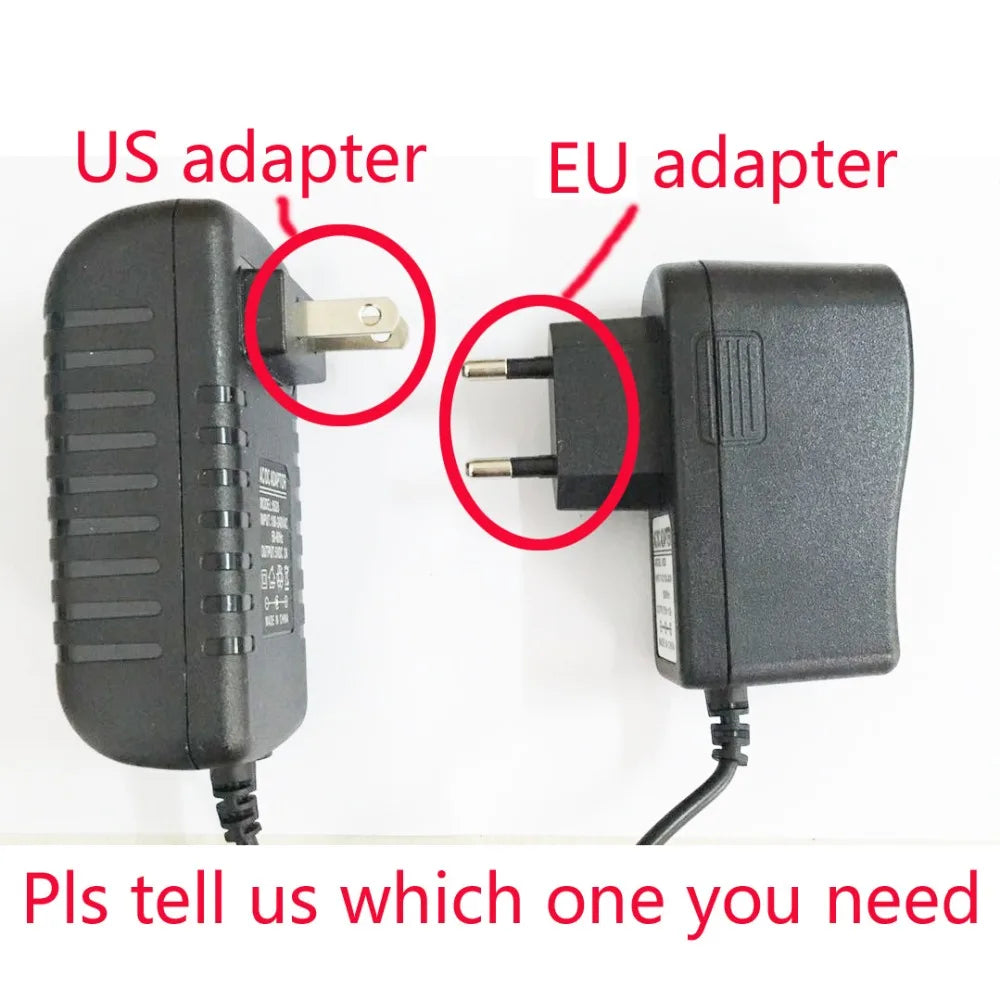

Pls note, we have 2 adapter for choose. EU and US.  pls leave us massege which one you need



_20171121154422







IMG_0572IMG_0573IMG_0574












1, two modes of presentation:
Manual mode: put the cup, press the start button to start irrigation, weighs filling volume is automatically stopped.
Automatic mode: put the cup, the system detects and automatically begin watering cup, weighs filling volume is automatically stopped.


2, the screen real-time display of the following parameters:
W: XXXXg (weight value) U: Xg (minimum starting weight)
M: XXXXg (filling volume) K: Off (open: is irrigation, off: no irrigation)

3, "filling volume" M settings:
Press (B) key (M starts flashing), enter the value to be set by the numeric keys, press the (B) key (M stops flashing) is now set again.

4 "minimum start weight" U settings:
Press (C) button (U starts blinking) and then enter the value to be set by the numeric keys, press (C) key again (U stops flashing) is now set.

5, "Manual filling" method of operation:
(1) put the container, press (D) button to start irrigation. Once the weight on the scale reaches the set value, automatically stops.
(2) remove the filled containers, put down an empty container, press (D) to start the next time quantitative filling.

6, the "automatic filling" method of operation:
(1) Press (*) key to display the U: Xg (To ensure that X is less than the weight of the empty cup set). Put the container, automatically begin watering. Weight reaches the set value, automatically stops.
(2) remove the filled containers, put down an empty container, the automatic start time quantitative filling.

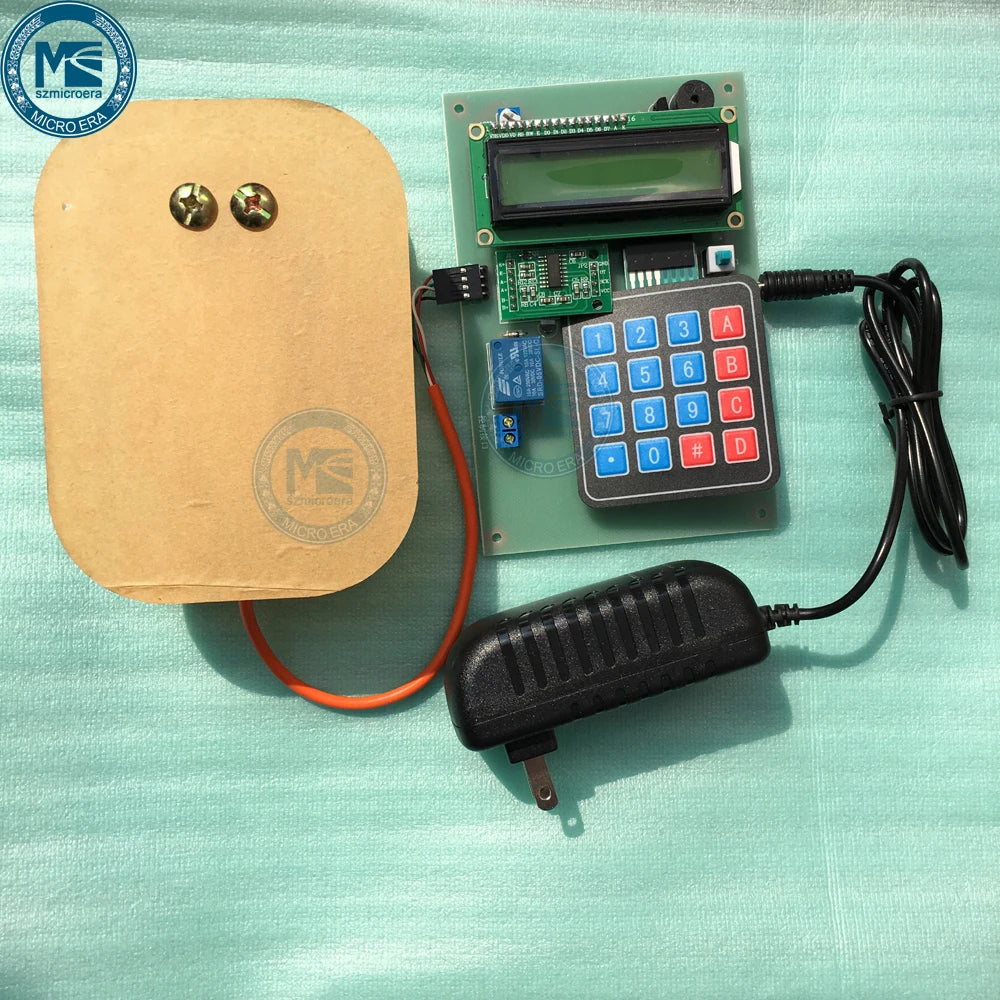

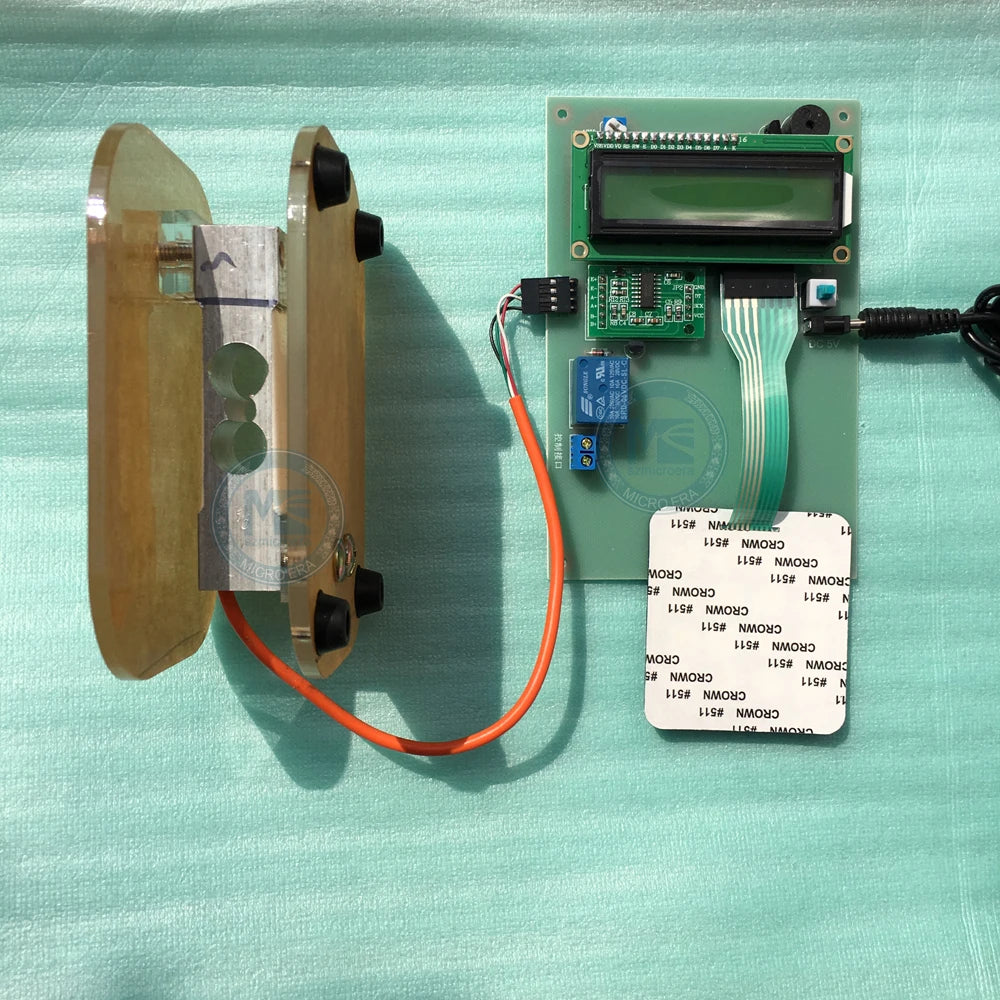

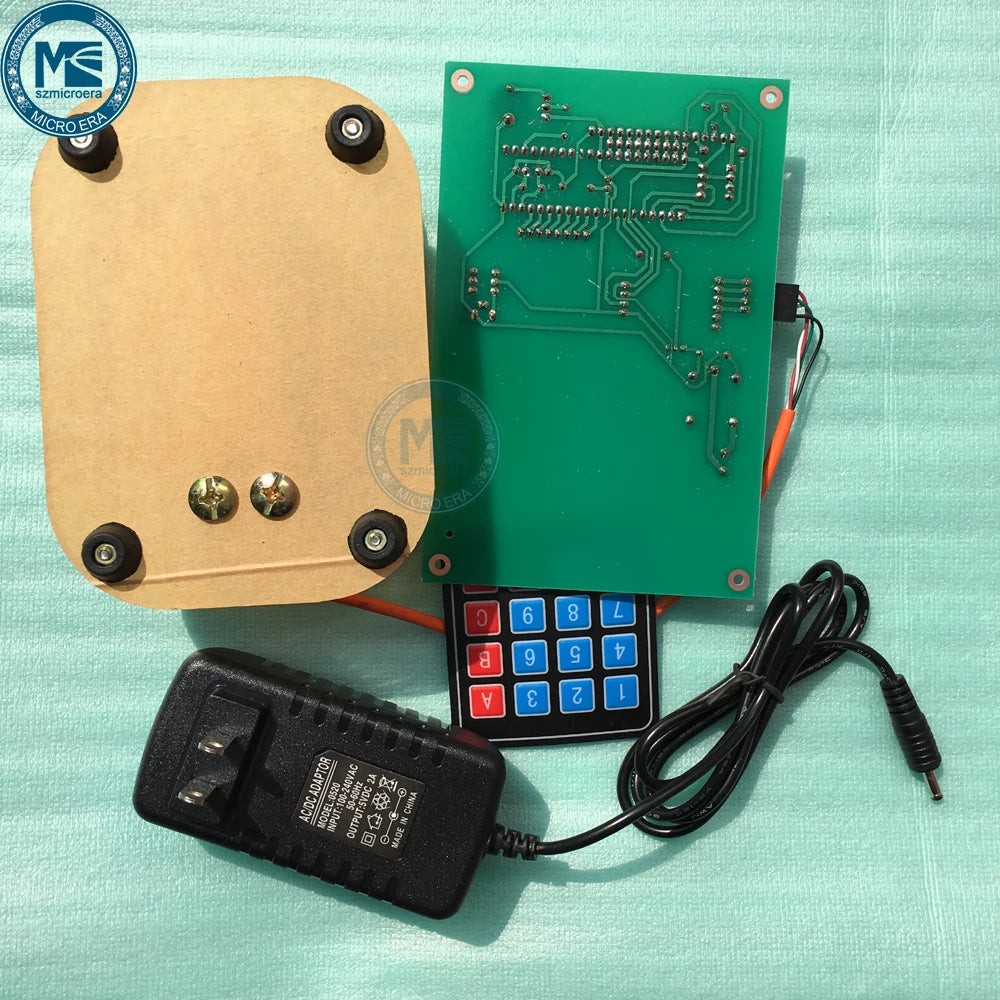

Note: This product is a controller (such as images), but reserved the control board pump switch interfaces, pumps and other equipment required to prepare their own.

Range: The default device weighing range: 1g-9999g



You can check the below connect method for reference
