M8210-A01, Motor Controller for Cardiotech Treadmill, Circuit Board Control Board, Power Supply Board MT8345A1, M8XXV12

M8210-A01 Treadmill Motor Controller For Cardiotech Treadmill Circuit Board Control Board Power Supply BoardMT8345A1 M8XXV12

Package include

Controller M8210-A01 *1PCS

Specification

1. Part number: ZM8210-A01
2. Application: for treadmill

Warranty

90 days warranty.

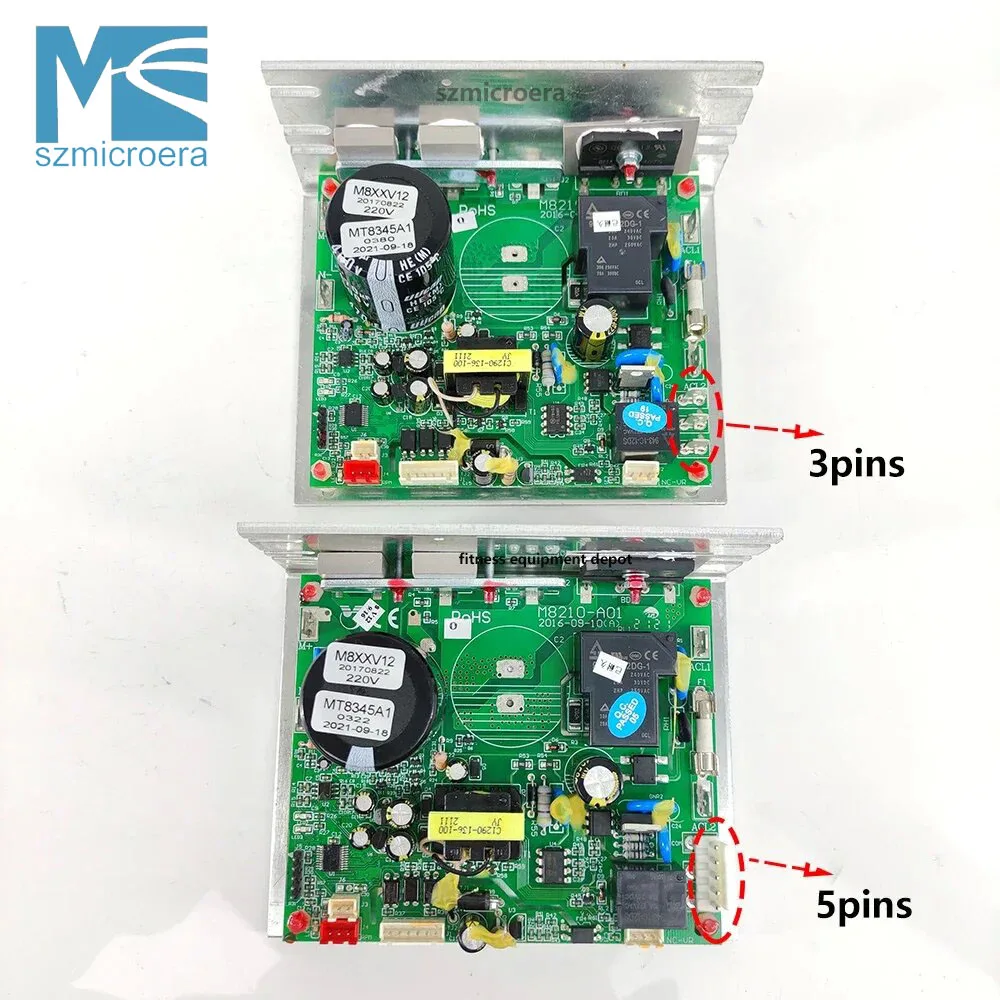

Confirm Right Board

Pls noted, this controller have serveral types. Pls send us a photo of your original/old board for confirmation before place an order, thank you!

How to determine the failed controller

E01: communication failure, sensor failure;

E02: you'd better test the motor first to check if there is any problem with motor, if motor work normal, then need to change controller.

E03: Sensor fault; treadmill will run few seconds then show E03;

E04: usually over-current fault, this situation is generally burned components on the controller;

E08: May be lift motor control fault.

Make sure the motor run normal by testing

Please make sure that there is no problem with the motor before you place your order.The motor can be tested by the method shown in the picture below. If the motor running smoothly by 2*5# battery, that means the motor is good. If running not smooth or do not run, it means motor broken.

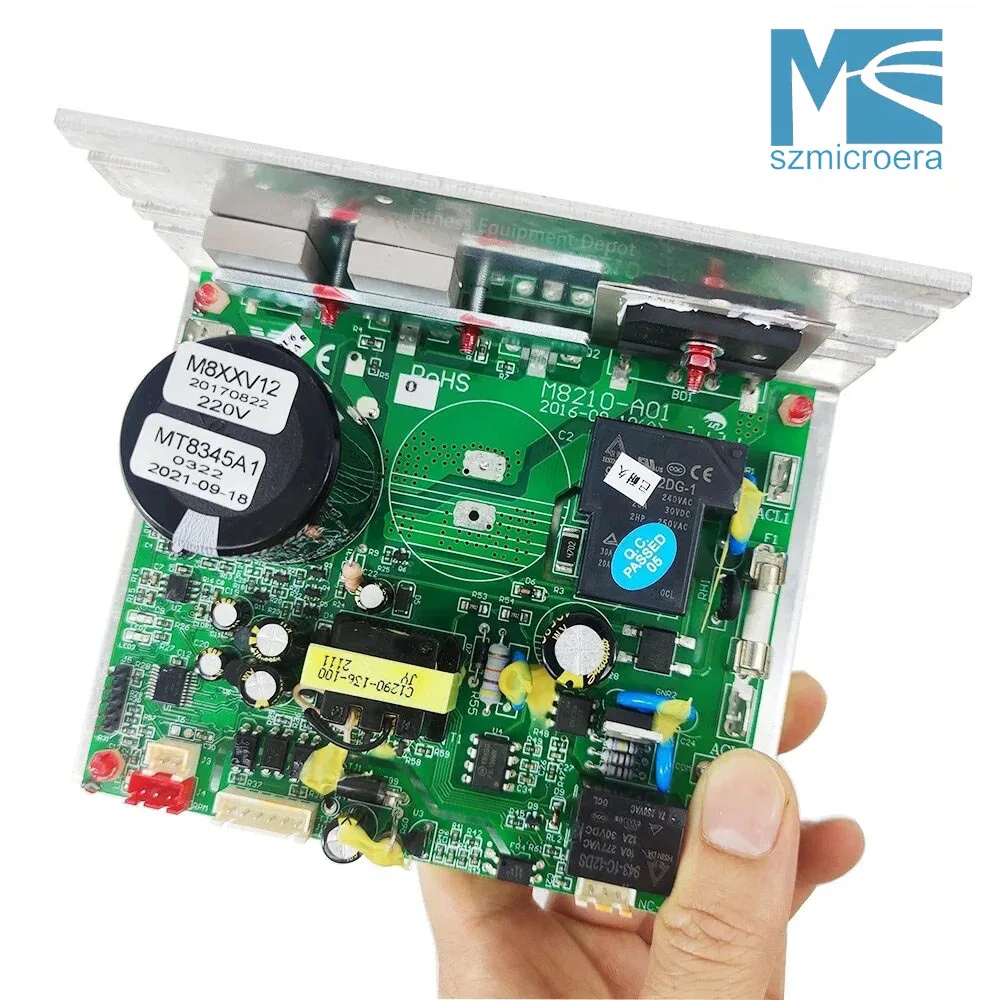

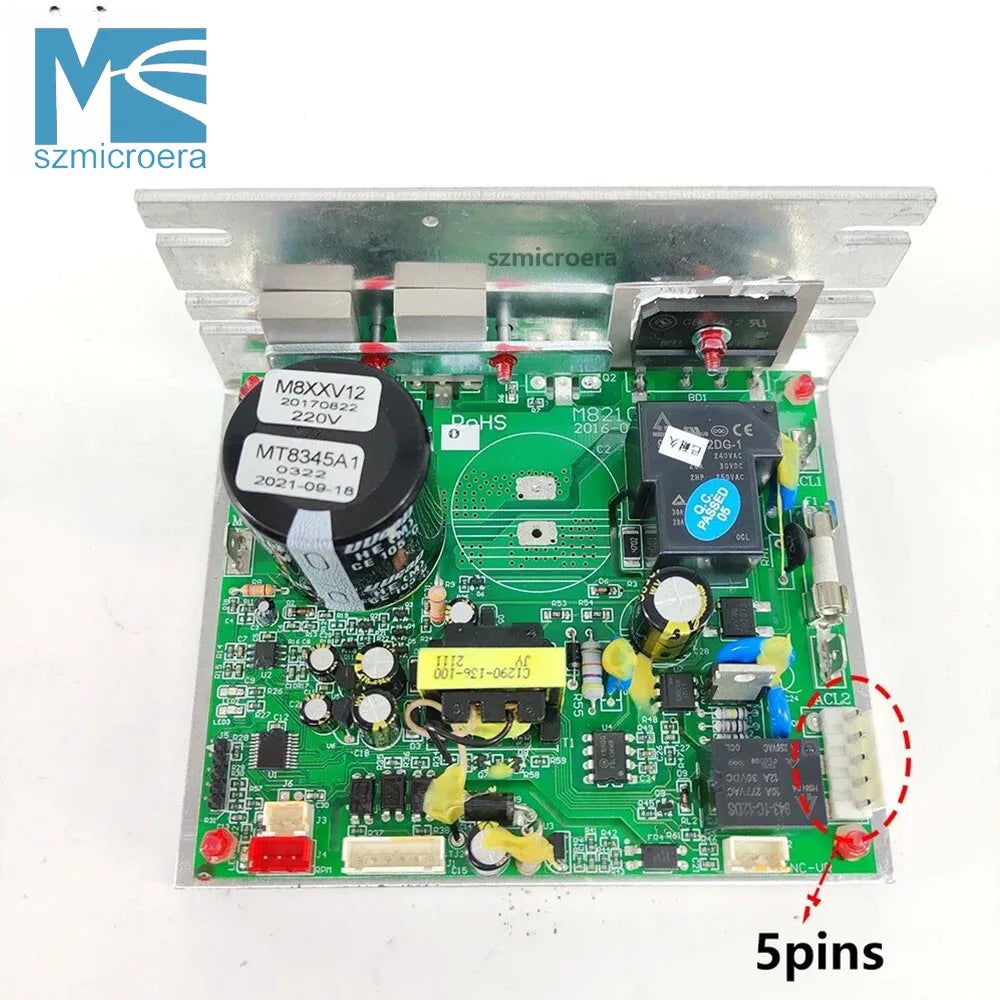

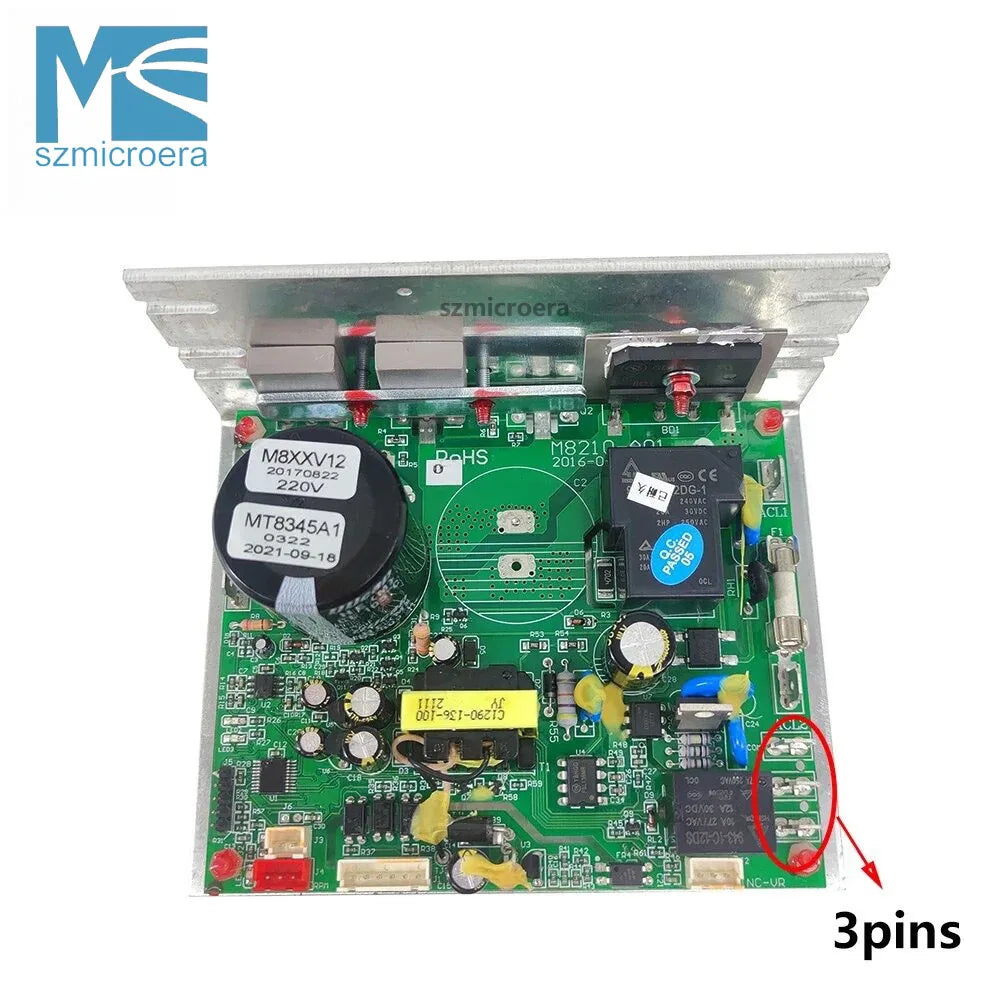

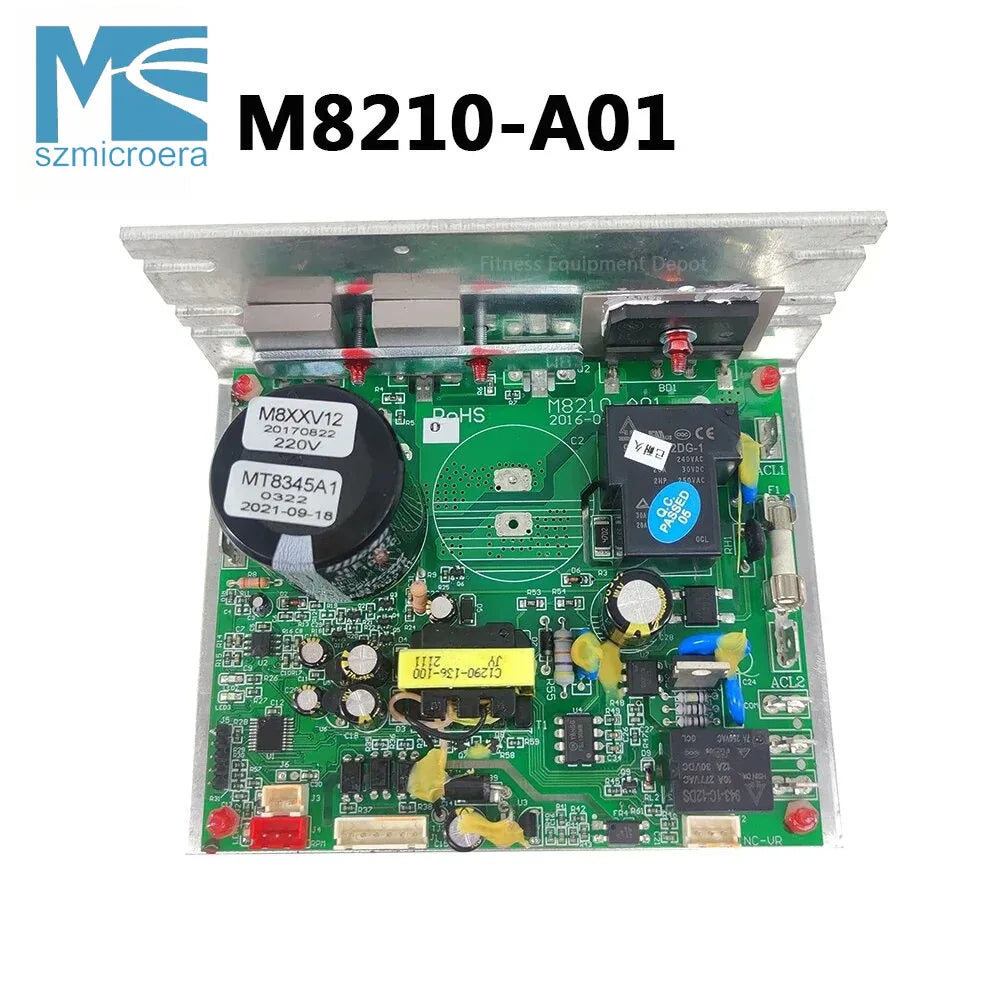

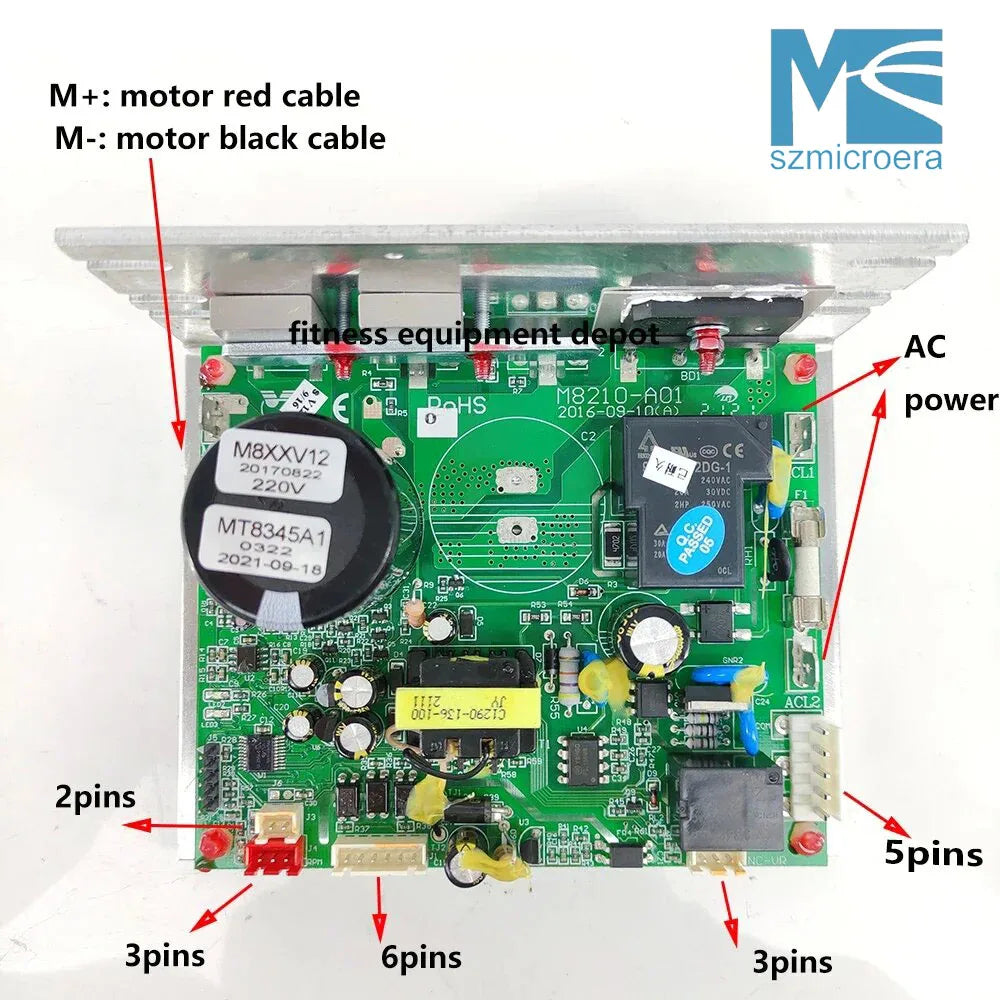

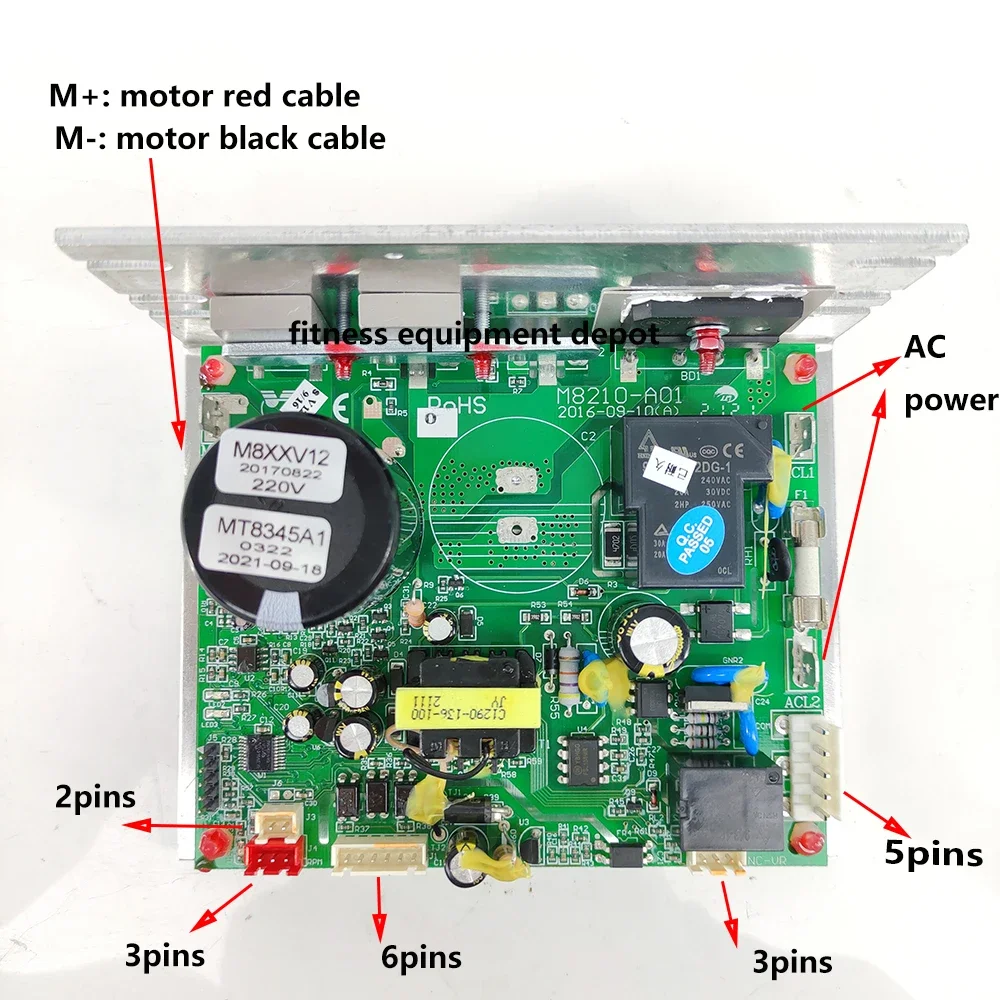

Real photos:

Good package
