Multi-function Power Supply Board Tester Repair Tool Power Supply Maintenance For LCD TV Tooling Digital Display Control

$54.98 USD
$0.00 USD $54.98 USD
Sale Sold out

Welcome to our store

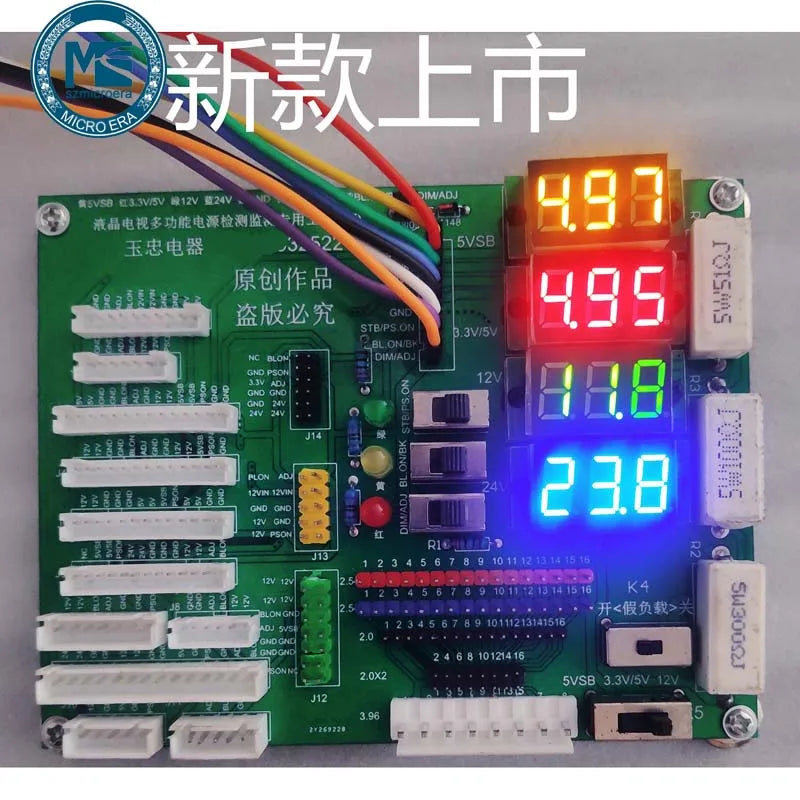

Multi-function Power Supply Board Tester Repair Tool Power Supply Maintenance For LCD TV  Tooling Digital Display Control

 Funtion Instroduton

1,special interface，directly connect to the original TV power line to test

2, universal interface，this is no connection with the fixture circuit，the original TV line needs to be wired into a suitable socket，Then the eight dupont lines according to the definition of the line up to the top of the first row of socket.

3,From the top to down is the secondary boot,Backlight Switch,Brightness control switch and Display diode.

4,The display unit is a 4-color voltmeter with 0.36 " big size, high precision and reverse connection protection,even wrong connection will not damage it.

5,High power false load resistance

6,Designed for 12V standby circuit

7,False load access, disconnect control

8, voltage selecting switch

Voltmeter adopts high precision voltmeter protected by 4 color belt,All switches are of high current and high quality

one old model lcd tv

Connect the cable with universal socket, standby voltage is normal

  • The output voltage is normal after the second start


  • Standby voltage is 3.3v, which can also be tested



The power supply of the second startup is normal



Enlarged view of power interface



Enlarged view of power interface for one other TV



Plug the street universal interface, connect the dupont line, 5v voltage is normal



Turn on the second power on switch and set up the normal voltage



Then turn on the backlight switch and brightness control switch, and see the backlight has been lit from the hole position

Following is the physical diagram of the interface. The seemingly simplest design achieves one to one hundred, so as to remain unchanged and adapt to ever-changing design.

1. There are five rows and four specifications for this adapter. No matter what specifications the row pins or socket pins are one-to-one.

2. The first line above connects the DuPont wire plug of the tester to the power supply board or the whole circuit according to the definition of the original TV layout.

3. The following four lines are connected to the layout of the original TV set. That is to pull the layout out of the main board and see what spacing it is. Then insert it into the corresponding pin or socket to complete the test.

4. When it is necessary to test the working state of the whole machine, the wire with socket is connected to the original circuit on one side of the welding joint, and the working state of the whole machine is monitored in real time.
