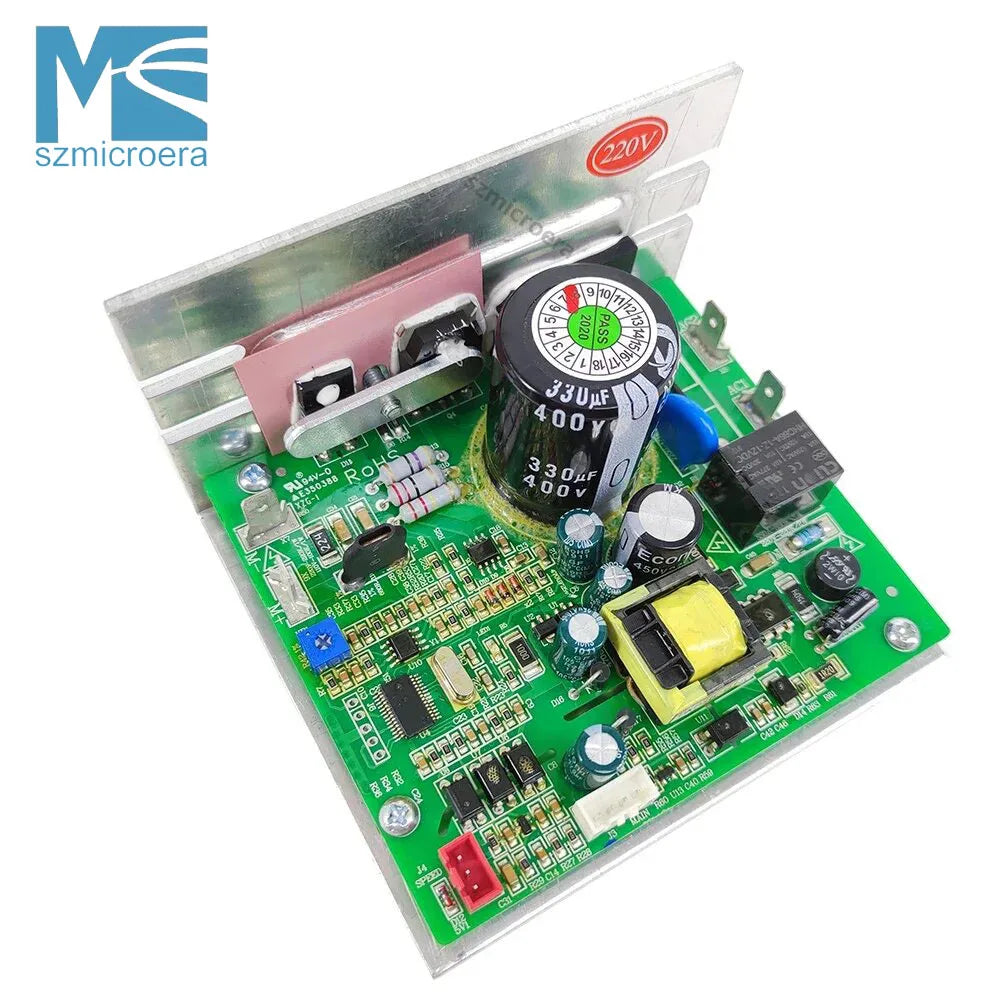

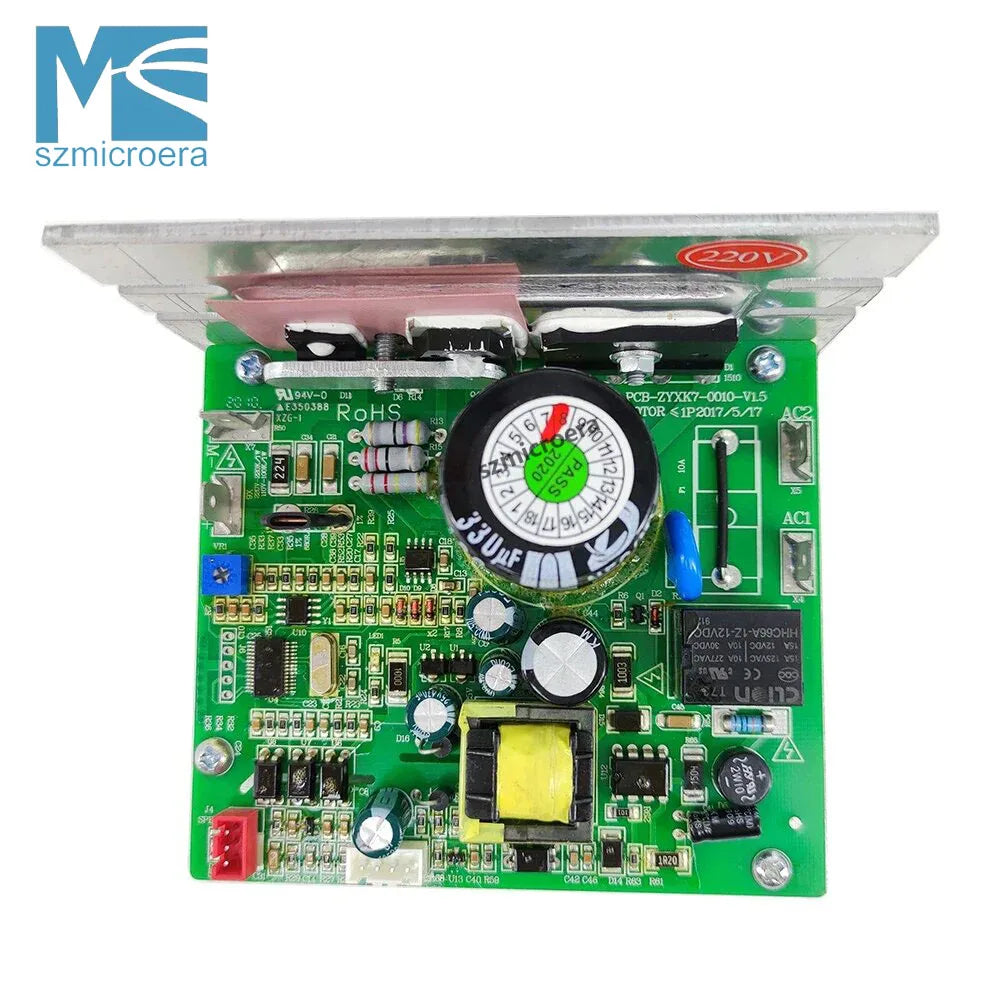

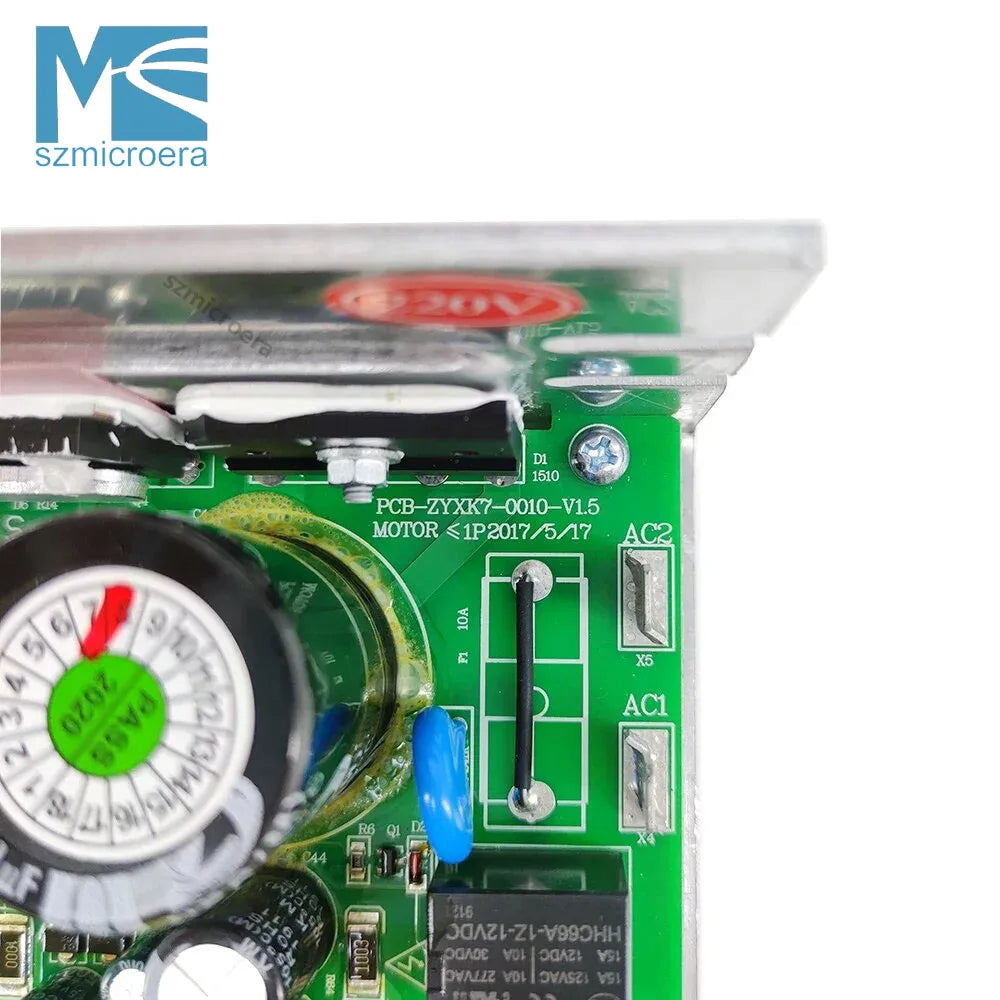

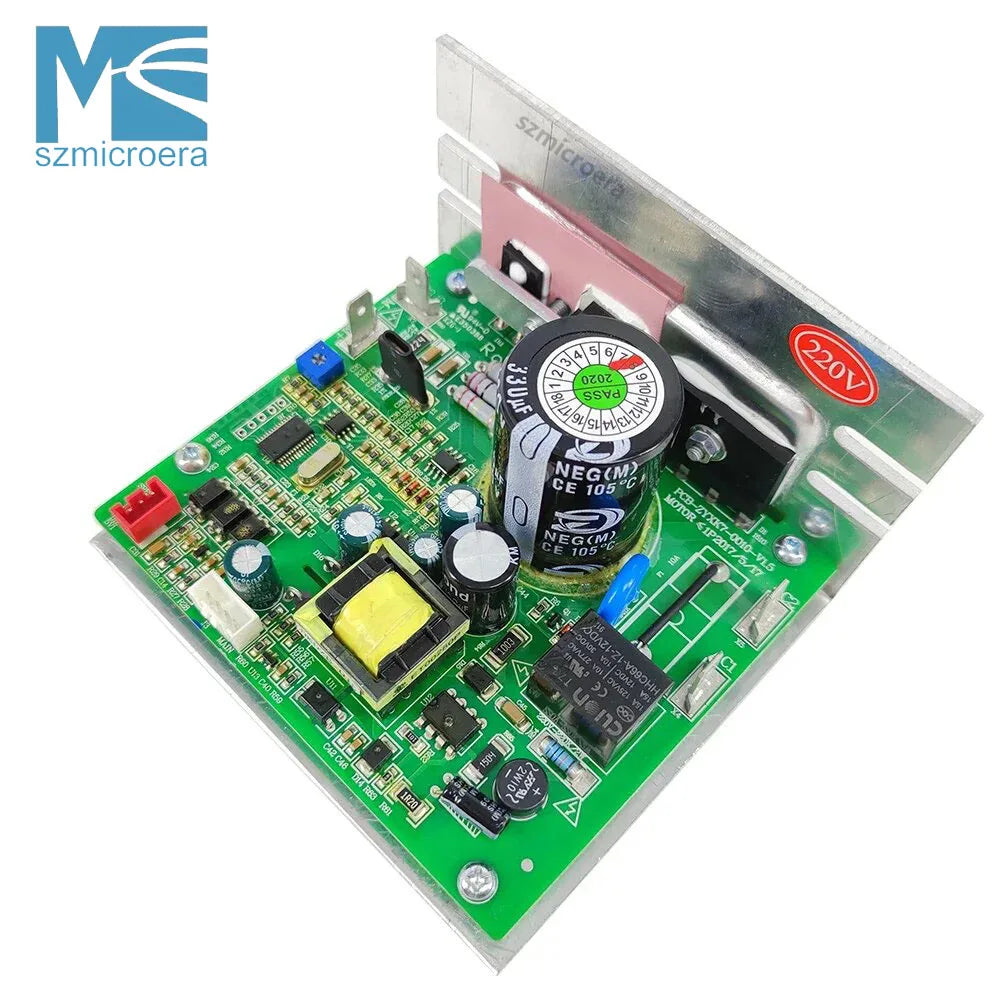

Power Supply Board PCB-ZYXK7-0010-V1.5 Motor Driver Board Treadmill Lower Control Board ZYXK7

Power Supply Board PCB-ZYXK7-0010-V1.5 Motor Driver Board Treadmill Lower Control Board ZYXK7

1 Product details:

(1) Part Number: PCB-ZYXK7-0010-V1.5

(2) Parcel including: 1pcs* control board

(3) Condition:new and test working before shipping

(4) Warranty 90days

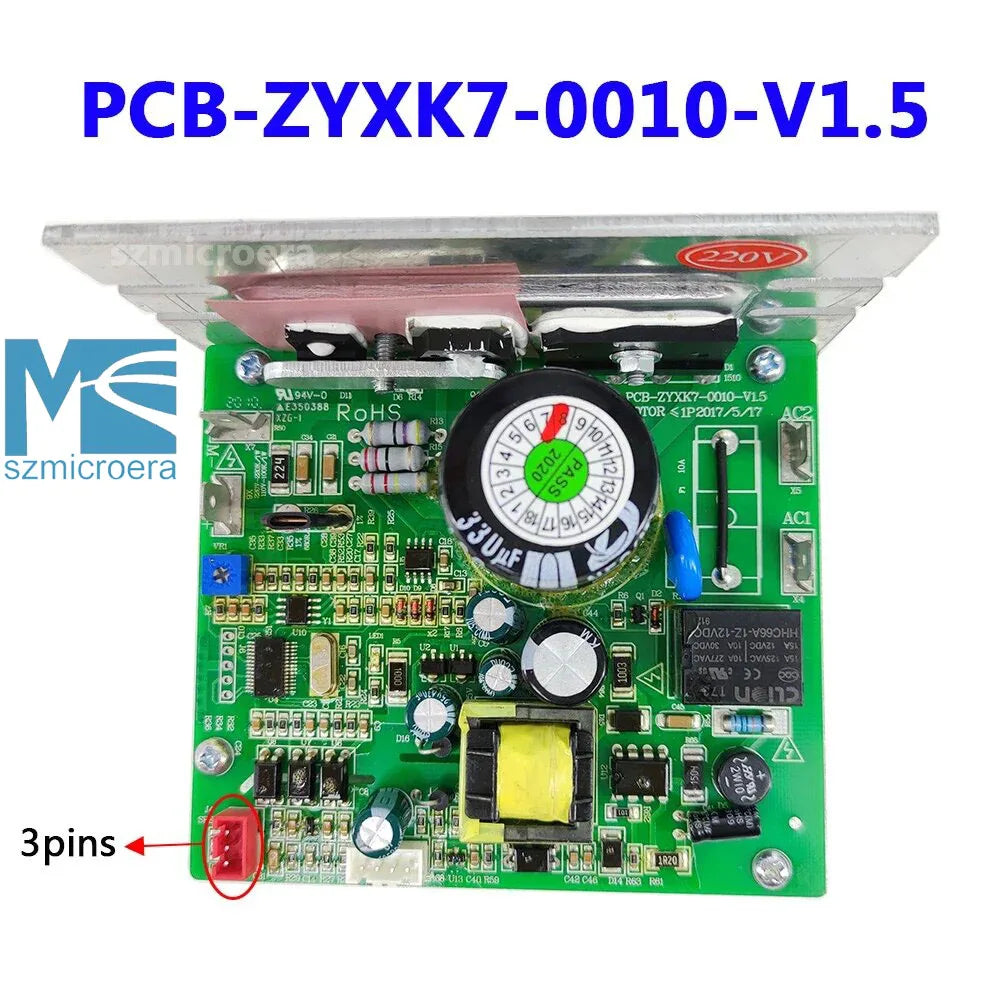

Note !! The controller work with 2kinds sensor, Pls kindly check the sensor connector before place the order.

2 How to determine the failed controller:

E01: communication failure, the individual is a sensor failure;

E02: controller failure, we want to know which detector is broken, if E02 is best to first test the motor to see if there are any problems motor

E03: Sensor fault; general treadmill will turn a few seconds later, there E03;

E04: generally over-current fault, this situation is generally burned components on the controller;

3 Test motor before order

Please make sure that there is no problem with the motor before you place your order.The motor can be tested by the method shown in the picture below. If the motor running smoothly by 5# battery, that means the motor is good. If running not smoothly or do not running, it means the motor broken.

4 Professional packing

5 Contact us if you need more parts

6 Leave a feedback

your feedback is very important for us.Please help to reviews our service.
