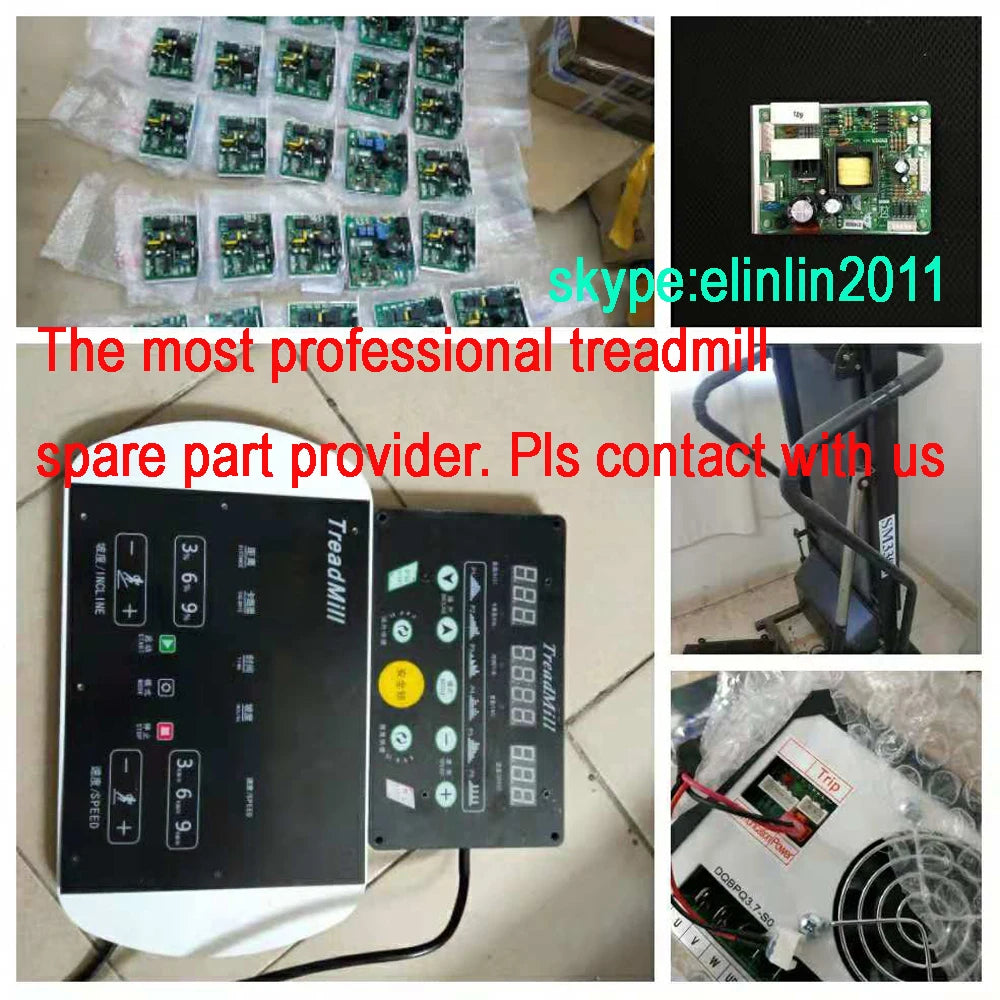

Treadmill Running Machine Spare Part Display,Invertor,Controller,Belt,Safety Key Gym Treadmill Spare Part
Couldn't load pickup availability
Treadmill Running Machine Spare Part Display,Invertor,Controller,Belt,Safety Key Gym Treadmill Spare Part
Pls contact us before you place an order. thank you.

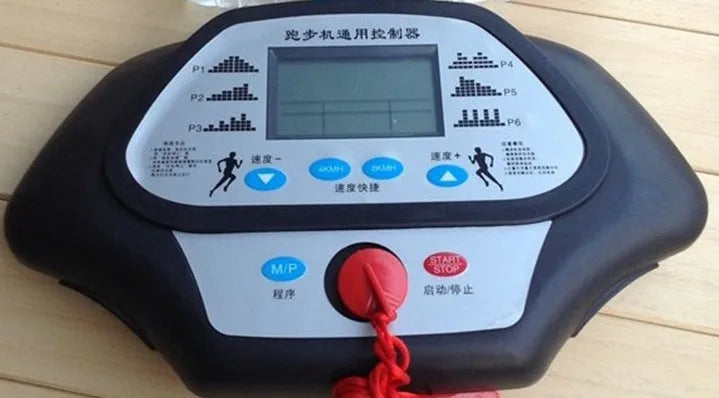

Display
1. LCD display
2. LED display
【Display:】 digital tube, LED display; touch button;
【Display content】: treadmill speed, exercise time, movement distance, calories and slope
【Key Function:】 start / stop key, mode setting key, speed plus or minus key, slope plus or minus key, speed shortcut key, slope shortcut key;
【Dashboard function:】 countdown mode, distance countdown mode, calorie countdown mode, motion built-in program;
【Installation:】 can be fixed with double-sided adhesive in the original shell surface; or embedded into the original treadmill instrument panel display window;
Instructions
1: press the start button, there are 3 seconds countdown, treadmill began to run;
2: press the stop button, treadmill slow down and stop
3: mode key: standby, press the mode key, enter the run mode settings;
4: After the treadmill is started, adjust the speed by speed addition or subtraction or speed shortcut keys
5: After the treadmill is started, adjust the treadmill slope by raising the plus or minus key
Error code
E1 communication failure
E2 power tube breakdown
6 The last step: put the security lock up, Finish setting.
NO |
Parameter definition |
Unit |
Defaults value |
Programming range |
101 |
Min speed |
KM/H |
1.O |
0.5~3.0 |
102 |
Max speed |
KM/H |
12.O |
3.0~16.0 |
103 |
Speed calibration |
——— |
13.5 |
1.0~20.0 |
104 |
Reservation |
——— |
——— |
——— |
105 |
Lifting mode |
——— |
10.O |
——— |
106 |
Sensor mode |
——— |
22.1 |
|
107 |
Output torque setting |
——— |
3.O |
0.5~20.0 |
108 |
——— |
——— |
——— |
——— |
109 |
——— |
——— |
——— |
——— |
Pay attention:
(1) 103 corresponds to the motor speed calibration, the greater the set value, the smaller the motor output speed;
if without sensor, 103 corresponding to the larger the value, the greater the motor output speed.
(2)105 corresponds to the lift control mode;
Ø 105 = 10.1 means can lift;
Ø 105 = 10.0 means can not lift
(3) 106 corresponds to the sensor mode;
Ø 21.9 means with light sensor
Ø 22.0 means with magnetic sensor;
Ø 22.1 means without sensor
(4) 107 corresponds to the size of the motor output torque, the greater the set value, the greater output torque.
After each setting of a parameter, be sure to click the "Start / Stop" button, to save the set parameters;
Please make sure that there is no problem with the motor before you place your order.
