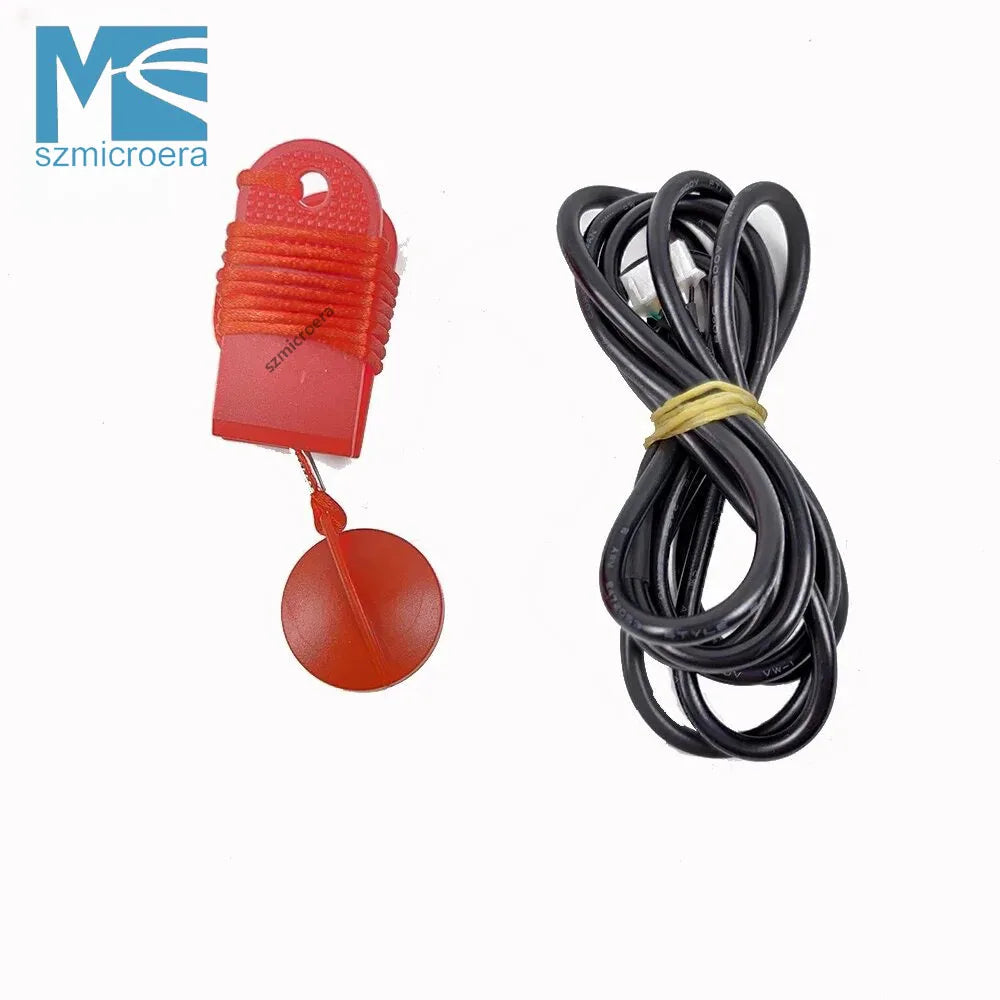

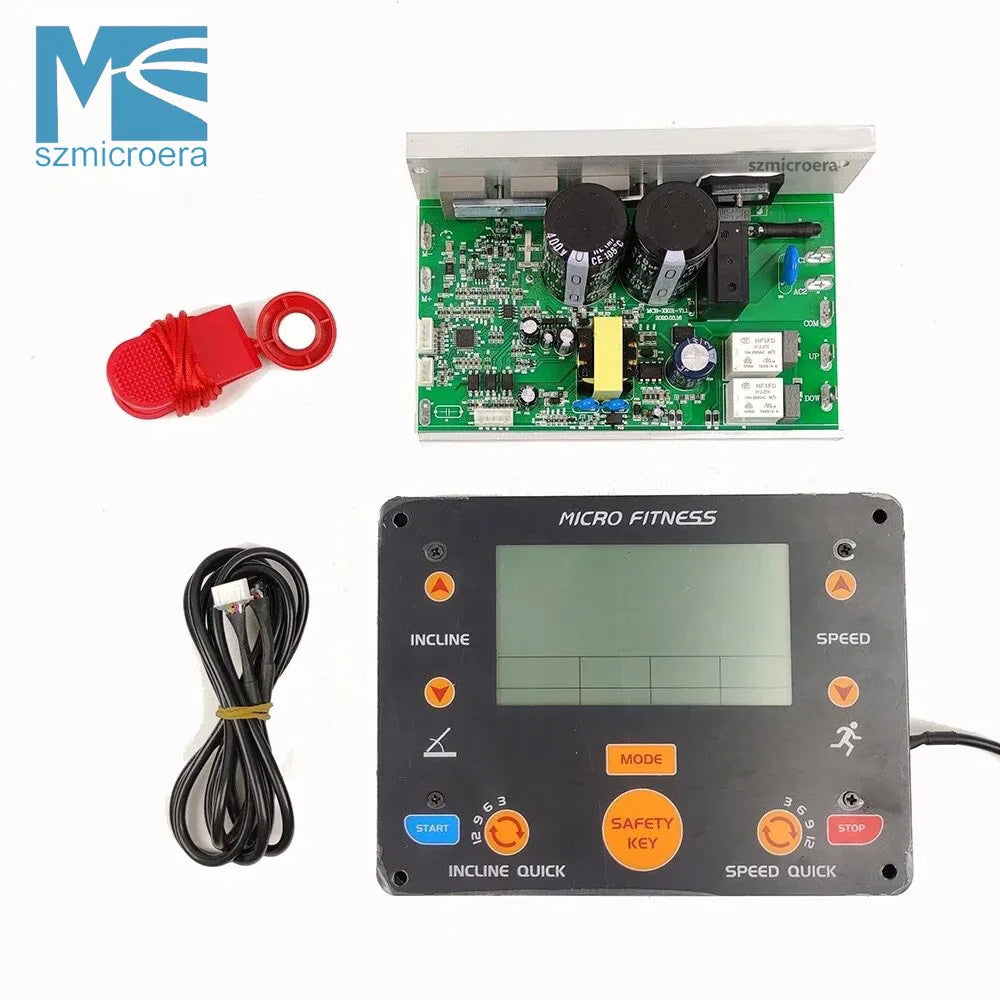

General USE Universal Treadmill Motor Control Board Controller For 1HP-4.0HP DC Motor With Console Display Tilt

Please note: This control set can use for Reebok, Johnson, BH and many other treadmills.  ( Exclude Icon brand treadmill).

1  Before order, please make sure 2 things

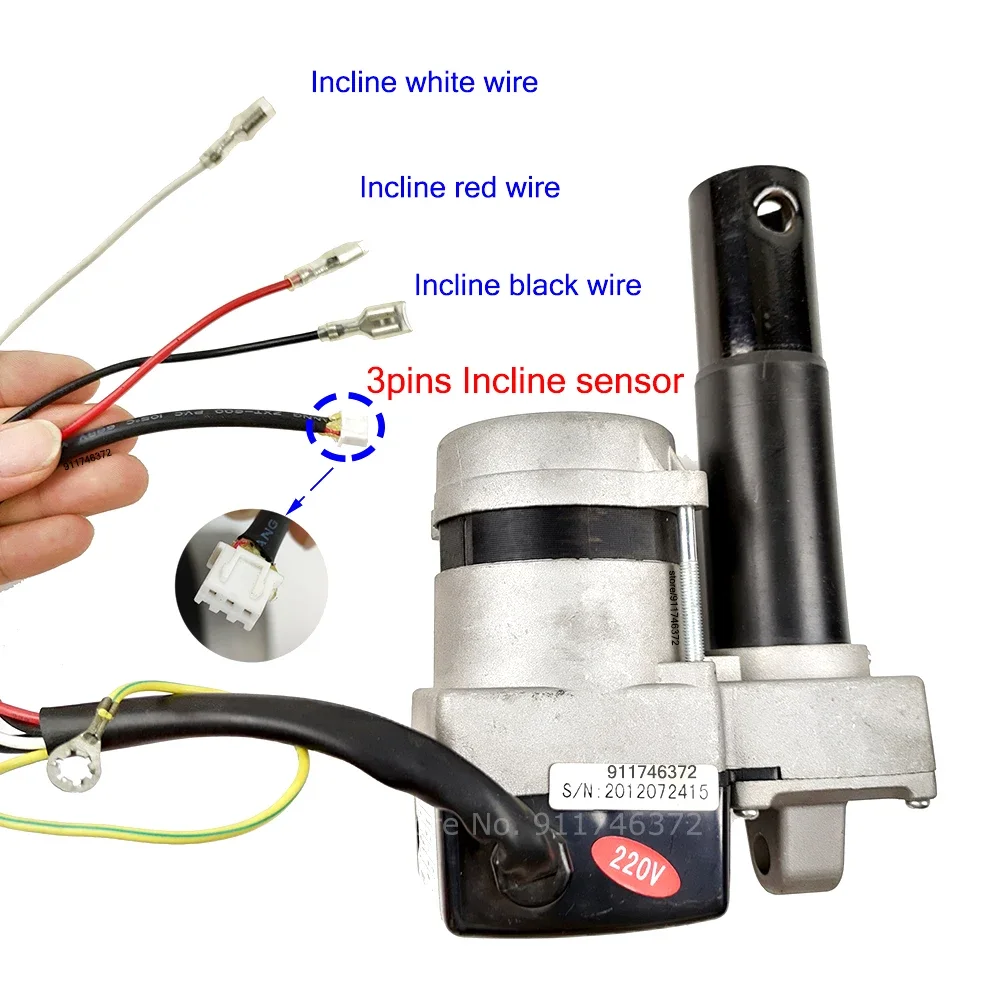

a> your treadmill incline motor is this type, with 3 wires and 3pins incline sensor.

b> make sure the DC motor functioning ( check below step)

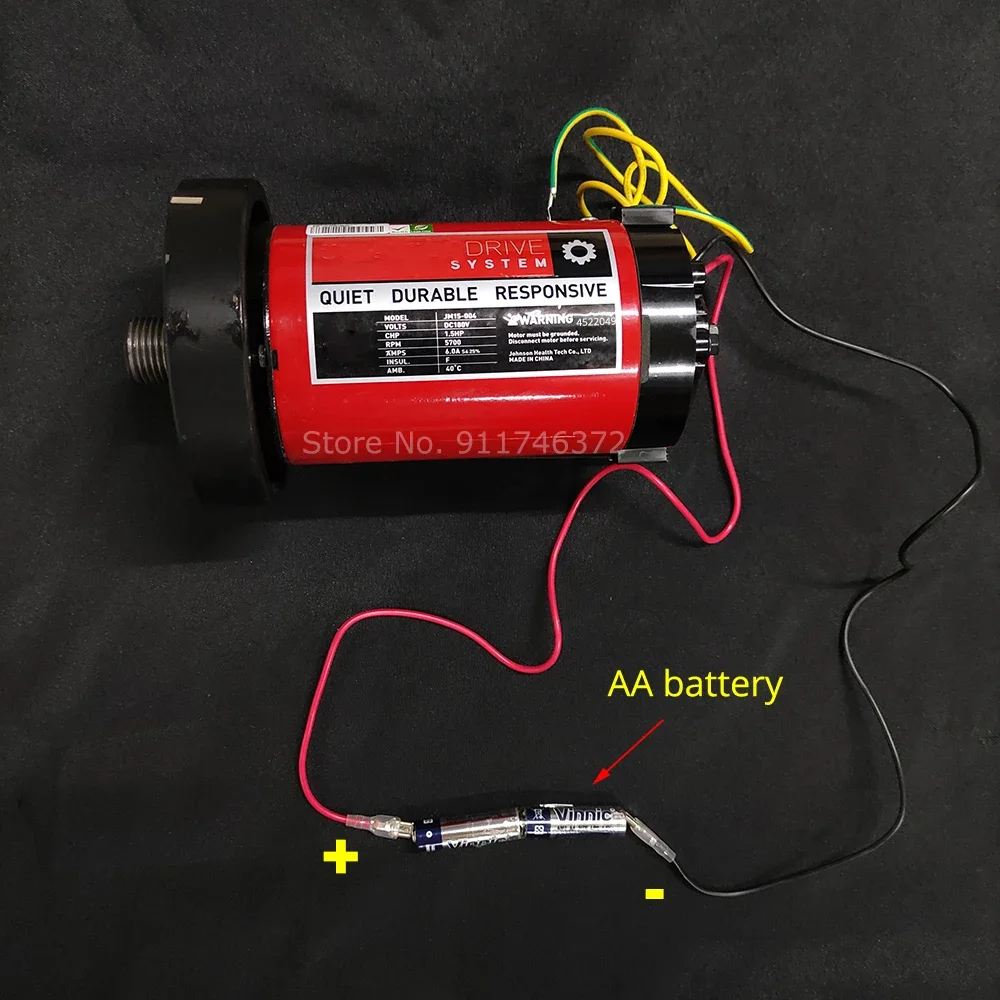

Use 2*5# batteries, connect to motor red cable and black, If the motor running smoothly, motor functioning.

If not, DC motor probably have issue.

2 How the Control kit works?

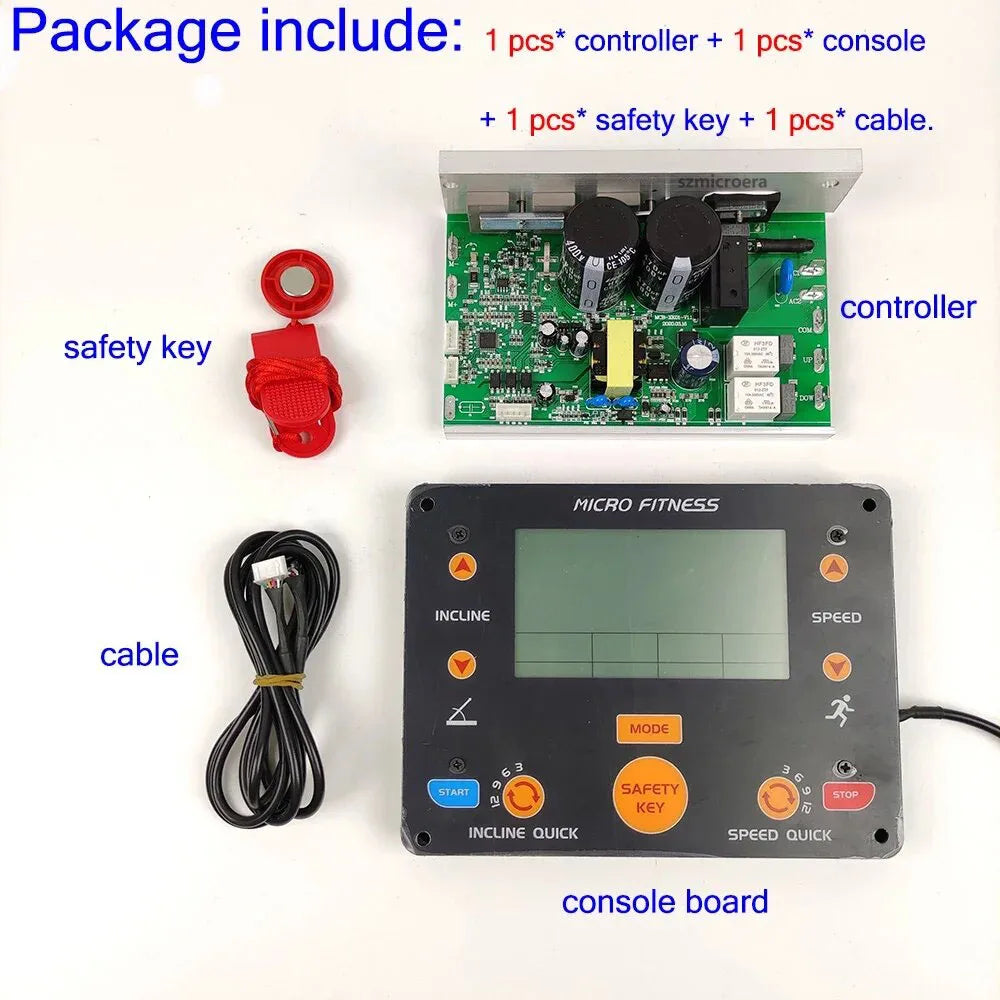

As below photo show,

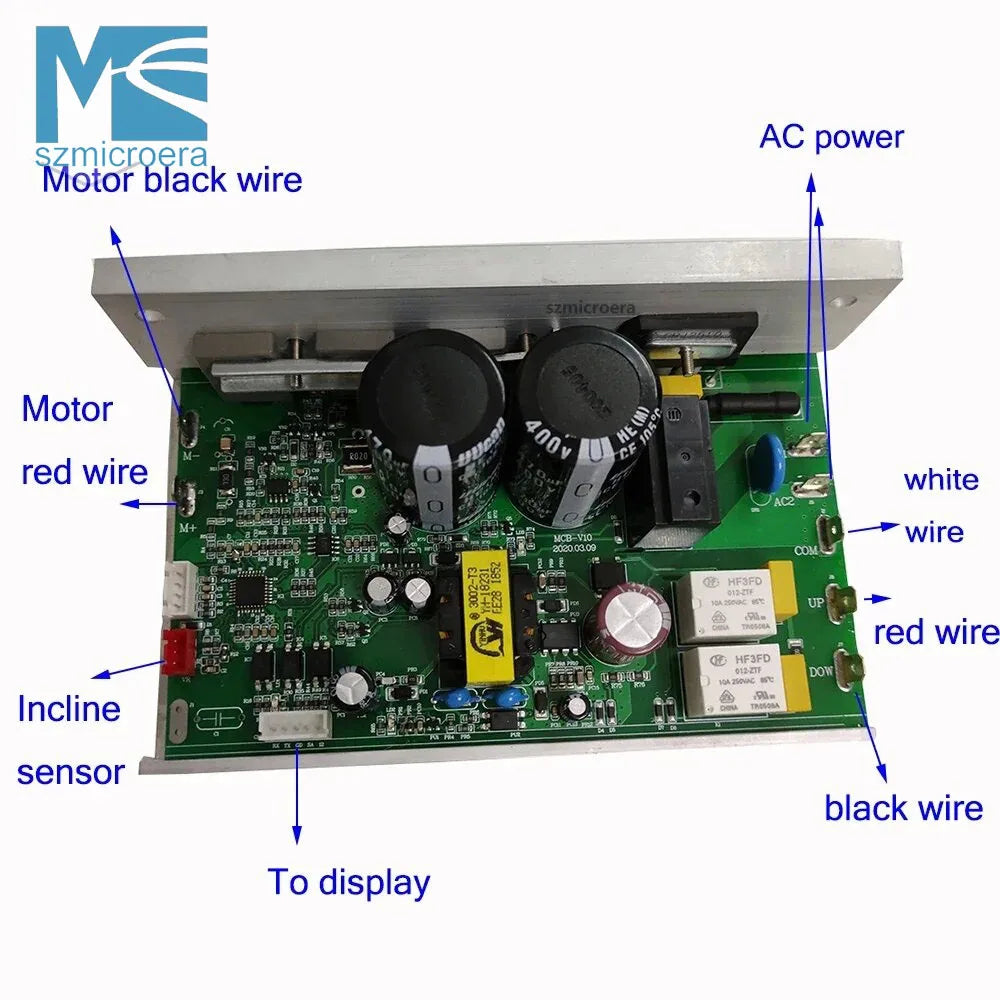

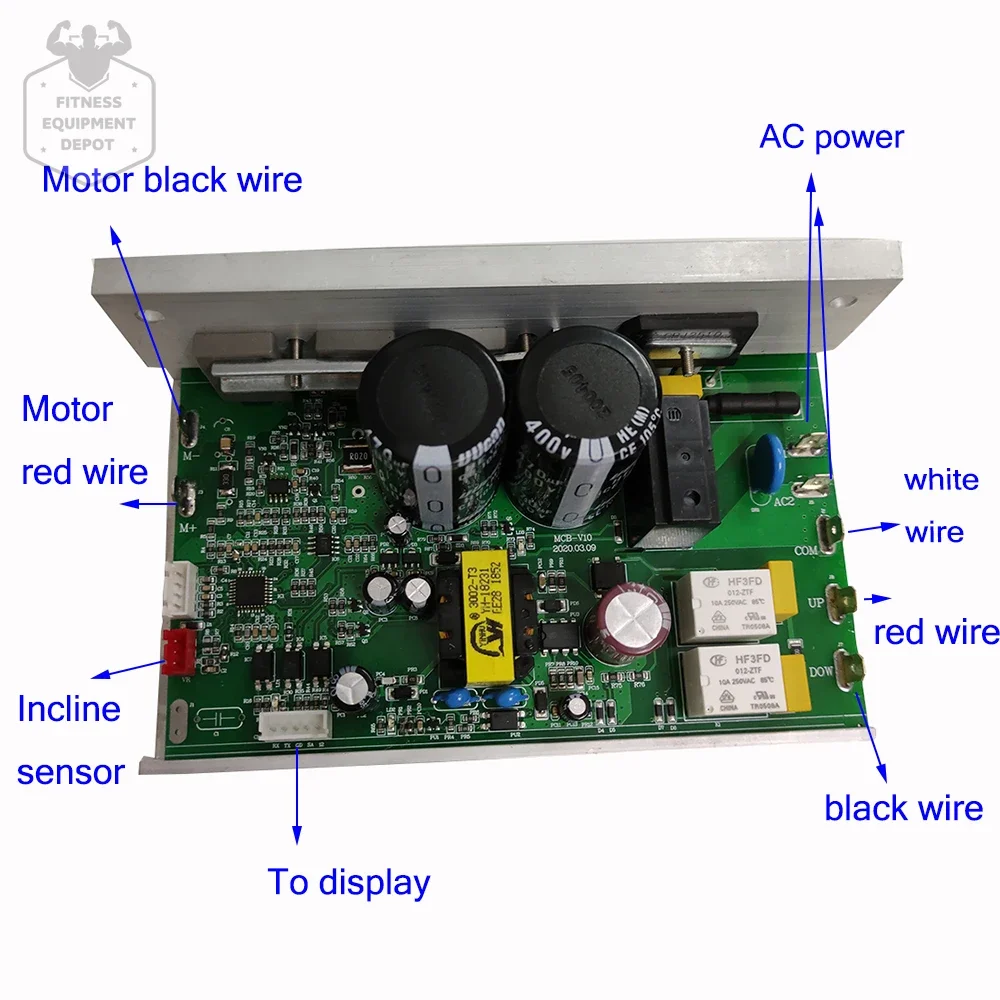

a> we connect the DC motor & incline motor to the controller

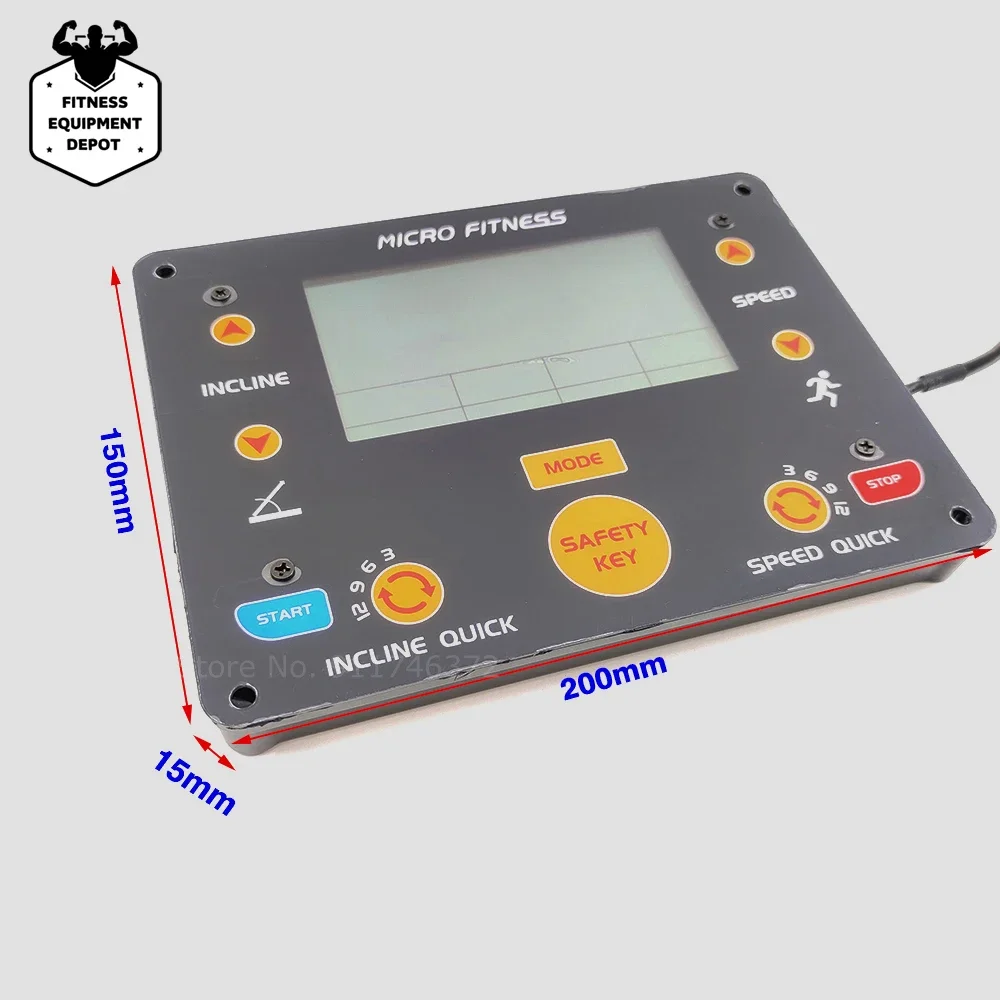

b> we connect the console board to the controller

c>  we connect the AC power cord to the controller, then the control kit can work.
