Universal Treadmill Motor Controller Running Machine Controller Display Panel Treadmill Controller Sets General Use

Universal Treadmill Motor Controller Running Machine Controller Display Panel Treadmill Controller Sets General Use

Note! This controller set can work without speed sensor. Pls check the video below( Video)

https://youtu.be/UZLS-WNGXFE

1.Condition: new

2. 3months warranty

3.Test working before shipping

4.Applied for motor power from 1.0HP-2.0HP

5. This controller set have tow options, with INCLNE & without INCLNE. Pls check the photo below

This type without INCLNE

This Type with INCLNE

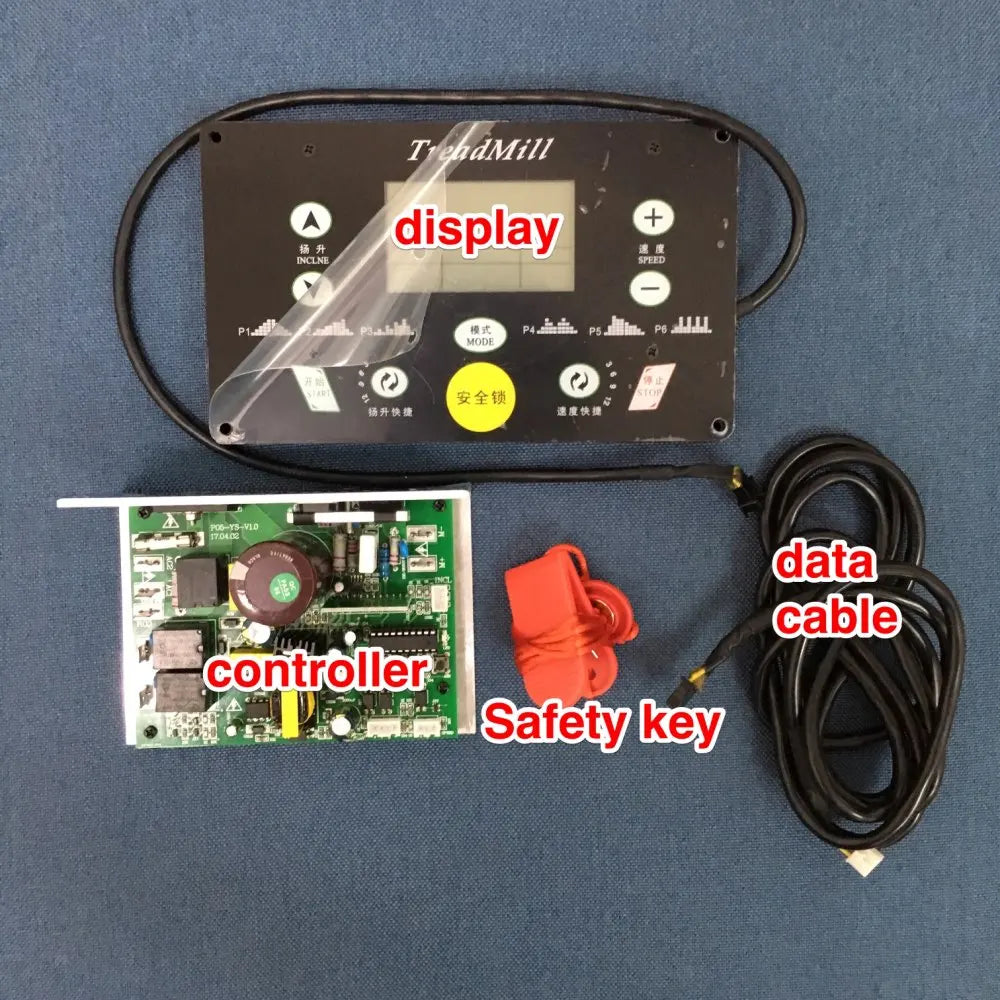

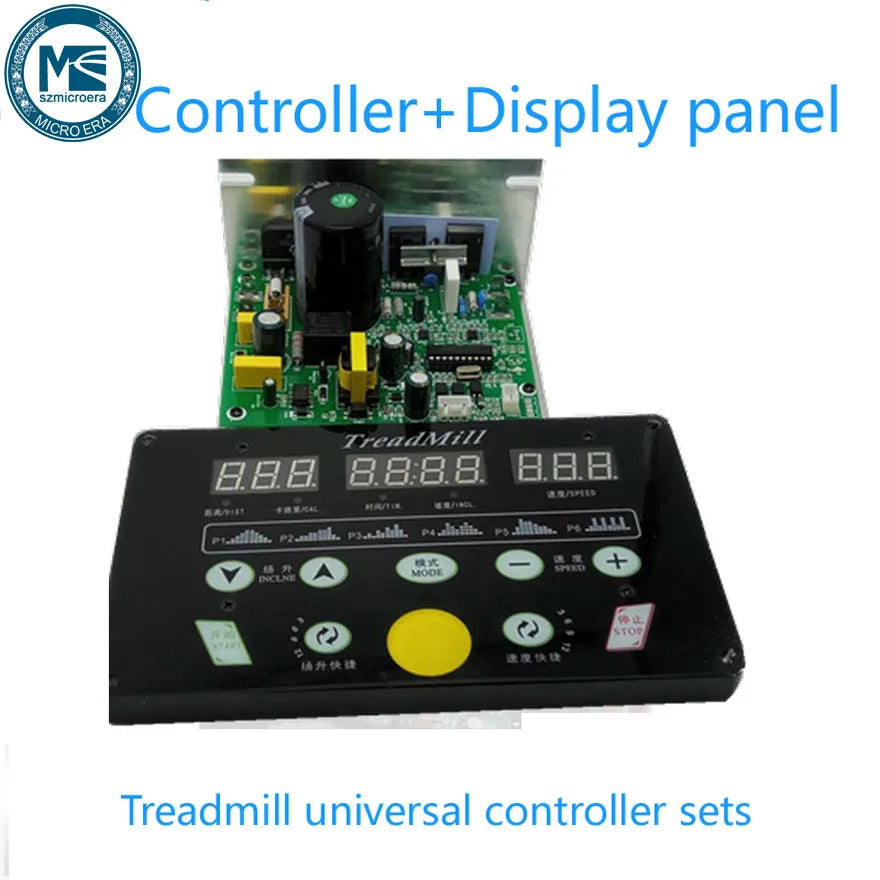

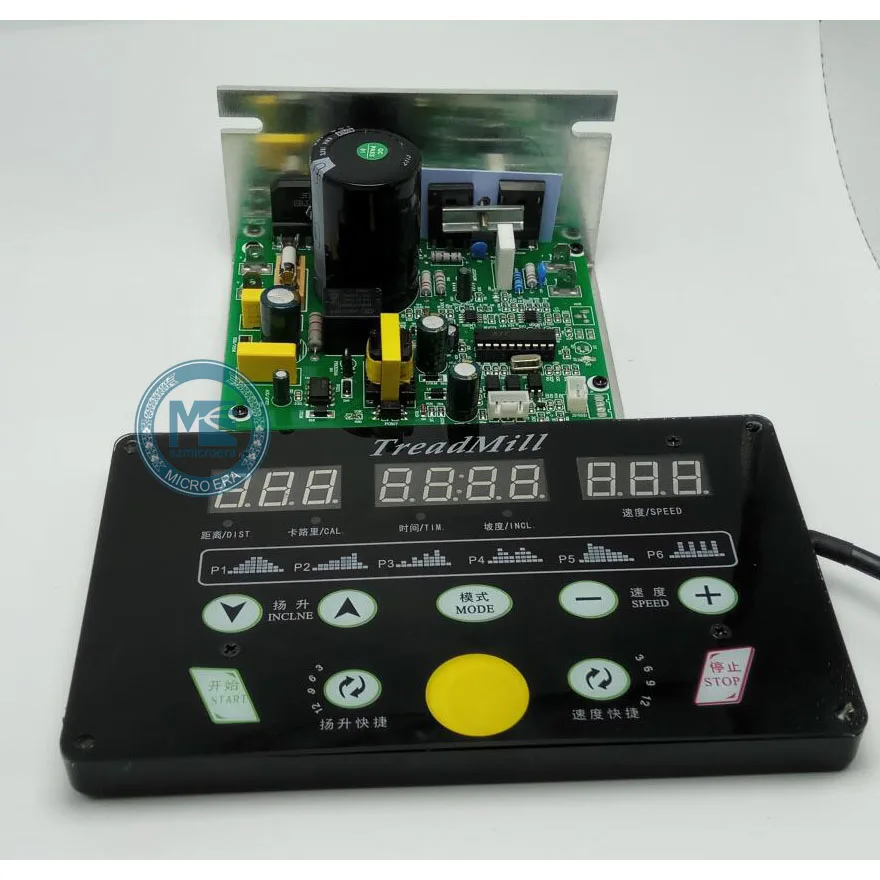

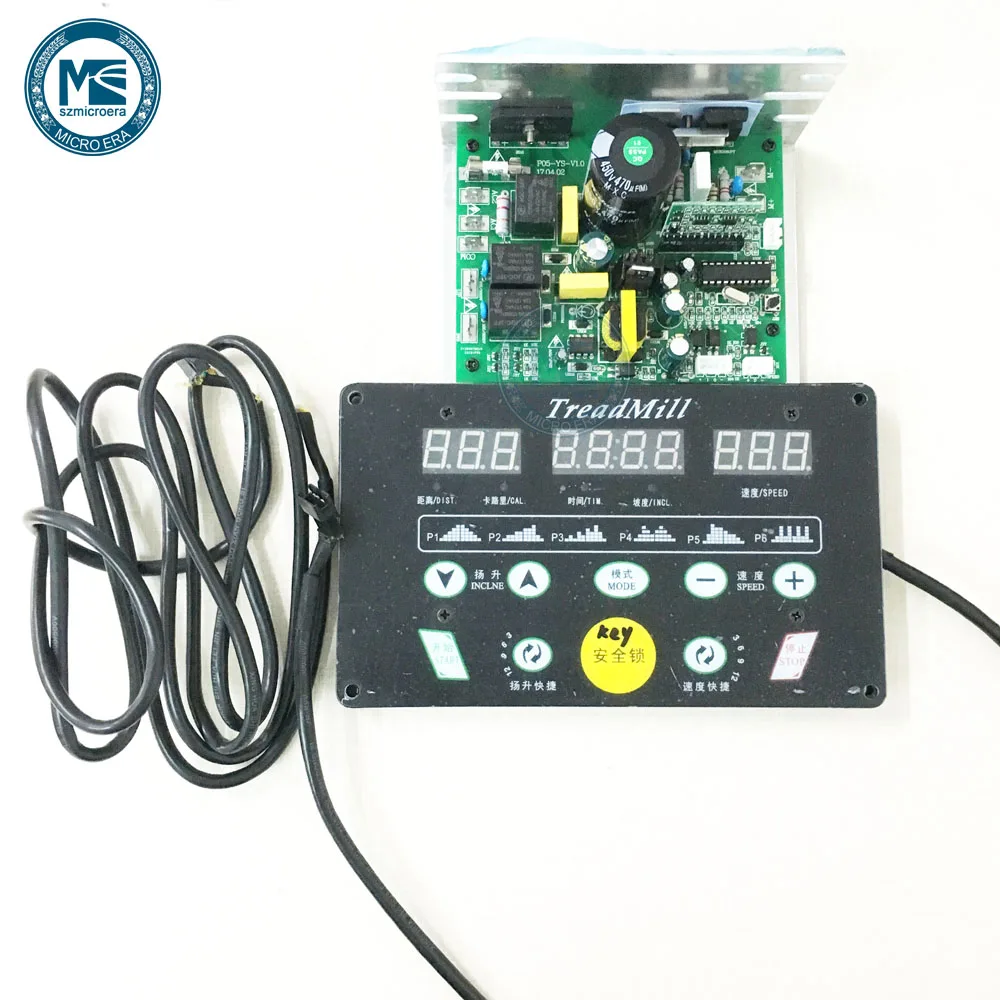

Controller

Controller Technical Parameters:

size: 130mm * 100mm * 70mm

Input voltage:[AC] AC85V ~ 255V

Sensor mode: Magnetic sense / light perception / no sense [default no sense mode]

Features:

1: set the sensor mode by setting; set the minimum speed and maximum speed; set the output torque size; speed calibration

2: overcurrent and speed protection

3: Output short circuit or open circuit protection

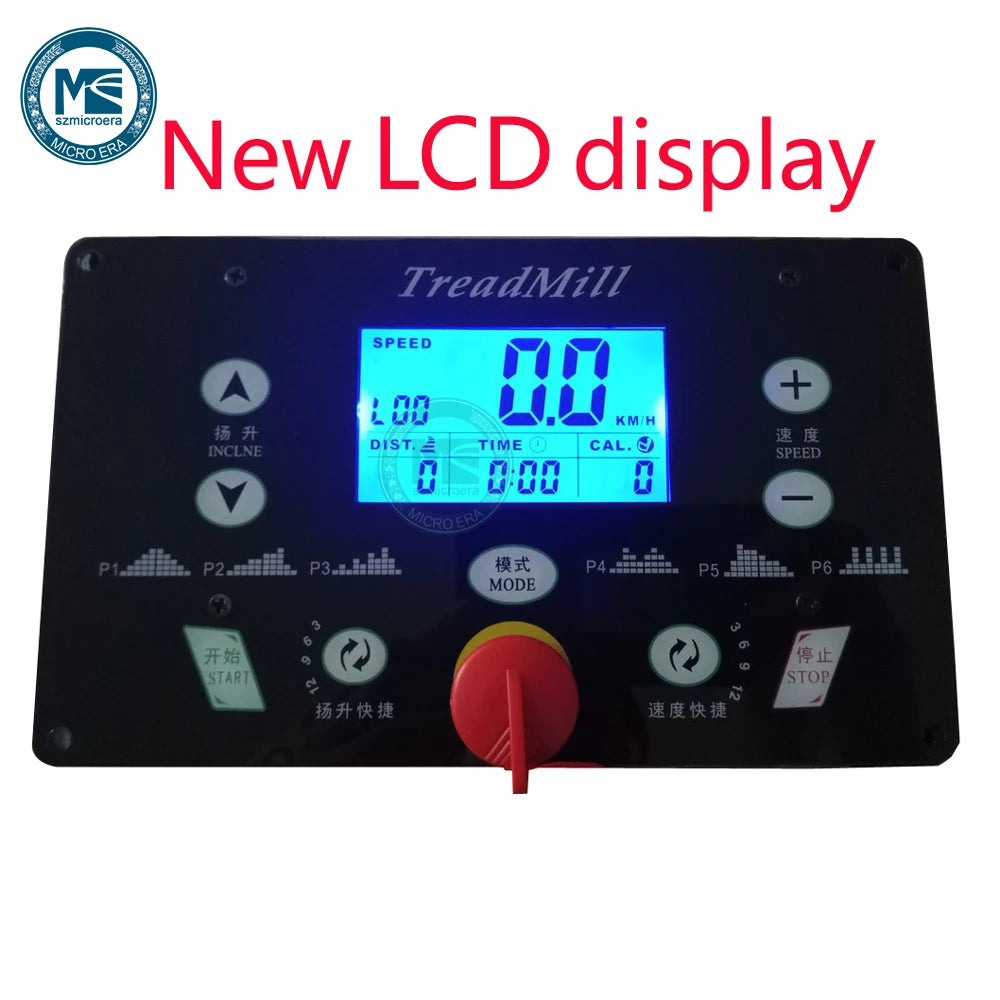

1. LCD display

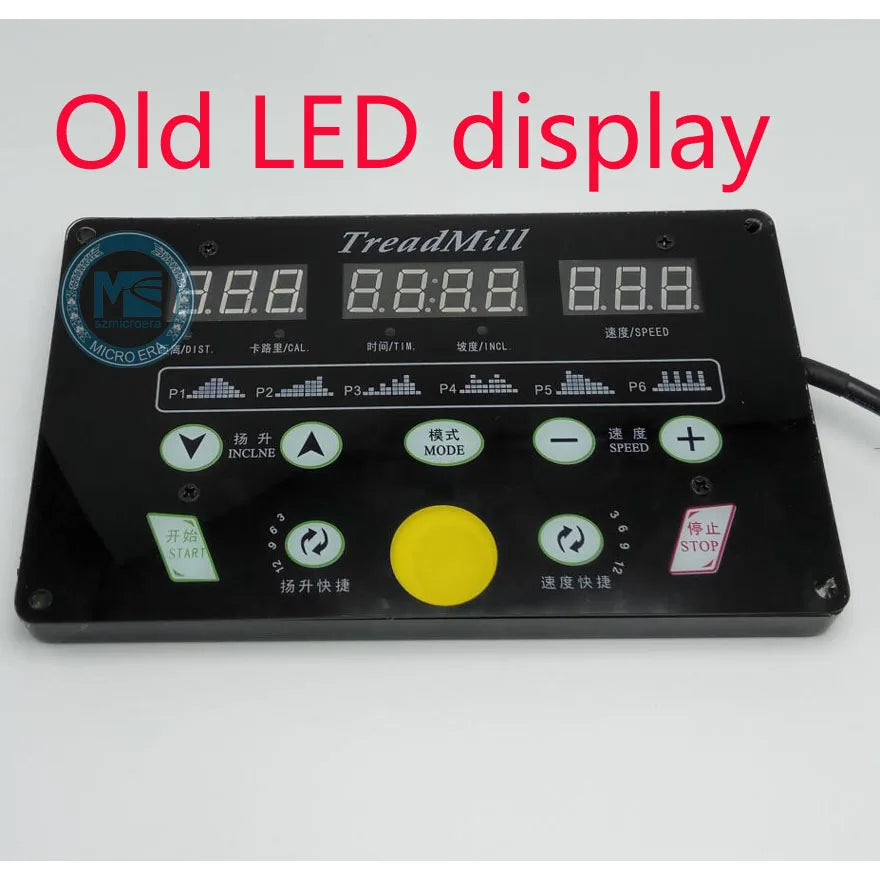

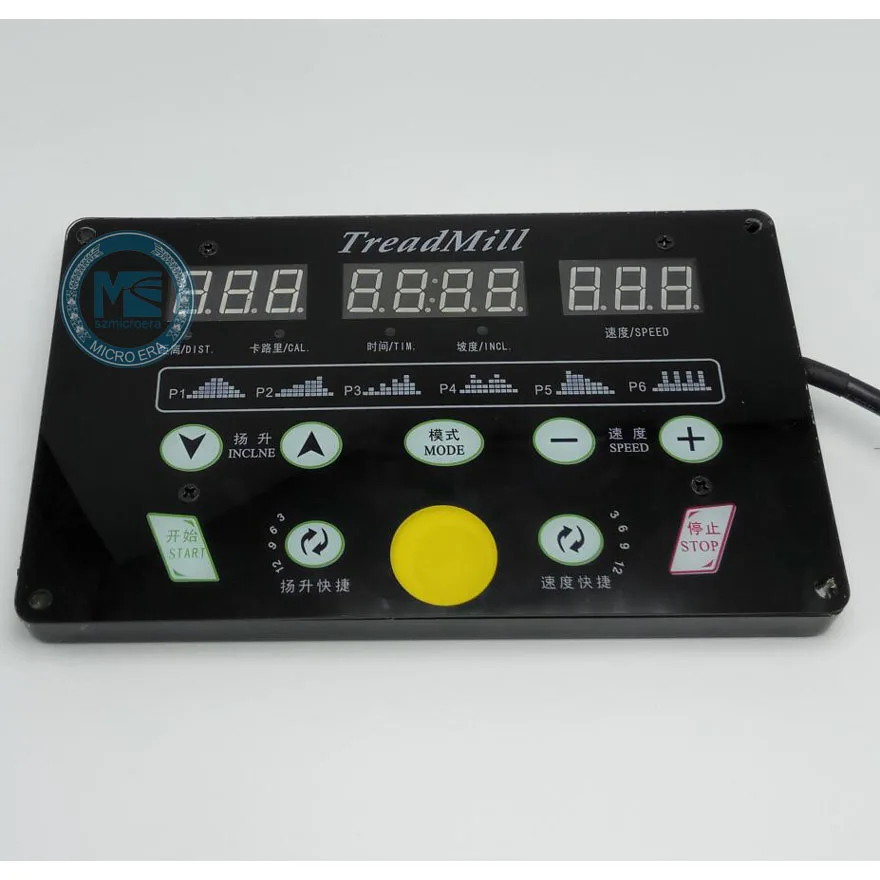

2. LED display

【Display:】 digital tube, LED display; touch button;

【Display content】: treadmill speed, exercise time, movement distance, calories and slope

【Key Function:】 start / stop key, mode setting key, speed plus or minus key, slope plus or minus key, speed shortcut key, slope shortcut key;

【Dashboard function:】 countdown mode, distance countdown mode, calorie countdown mode, motion built-in program;

【Installation:】 can be fixed with double-sided adhesive in the original shell surface; or embedded into the original treadmill instrument panel display window;

Instructions

1: press the start button, there are 3 seconds countdown, treadmill began to run;

2: press the stop button, treadmill slow down and stop

3: mode key: standby, press the mode key, enter the run mode settings;
