Universal Treadmill Motor Controller Set Treadmill New Screen

Universal Treadmill Motor Controller Set Treadmill New Screen

1.Condition: new

2. 3months warranty

3.Test working before shipping

4.Applied for motor power from 1.0HP-2.0HP

5. This controller set have tow options, with INCLNE & without INCLNE. Pls check the photo below

This type without INCLNE

This Type with INCLNE

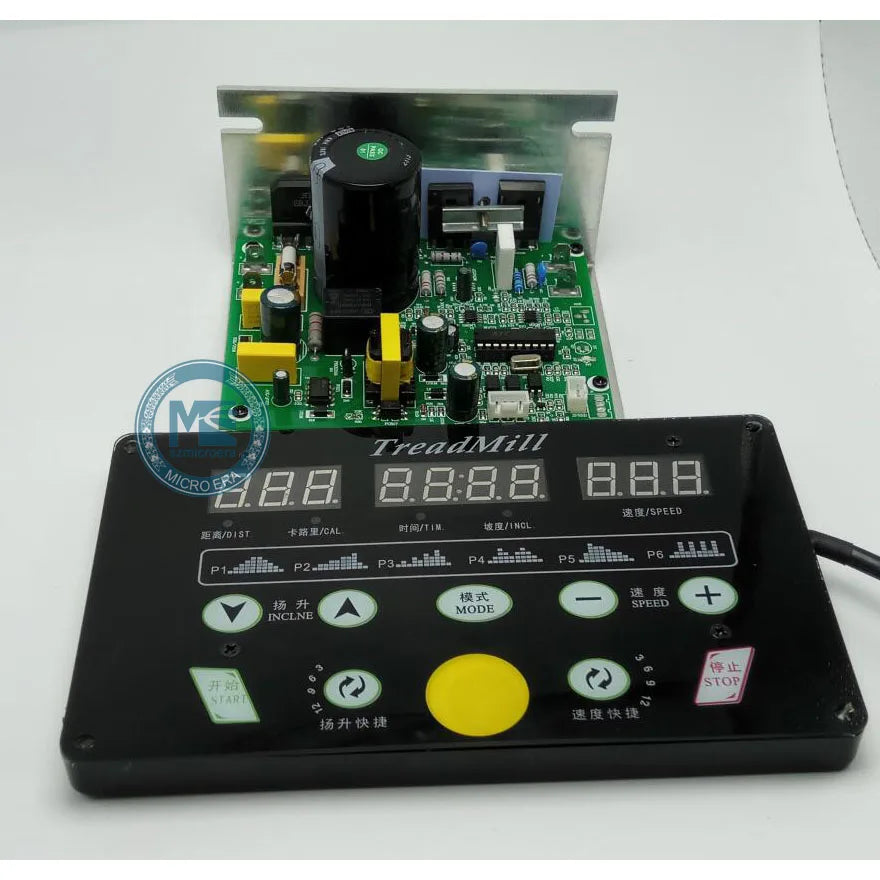

Controller

Controller Technical Parameters:

size: 130mm * 100mm * 70mm

Input voltage:[AC] AC85V ~ 255V

Sensor mode: Magnetic sense / light perception / no sense [default no sense mode]

Features:

1: set the sensor mode by setting; set the minimum speed and maximum speed; set the output torque size; speed calibration

2: overcurrent and speed protection

3: Output short circuit or open circuit protection

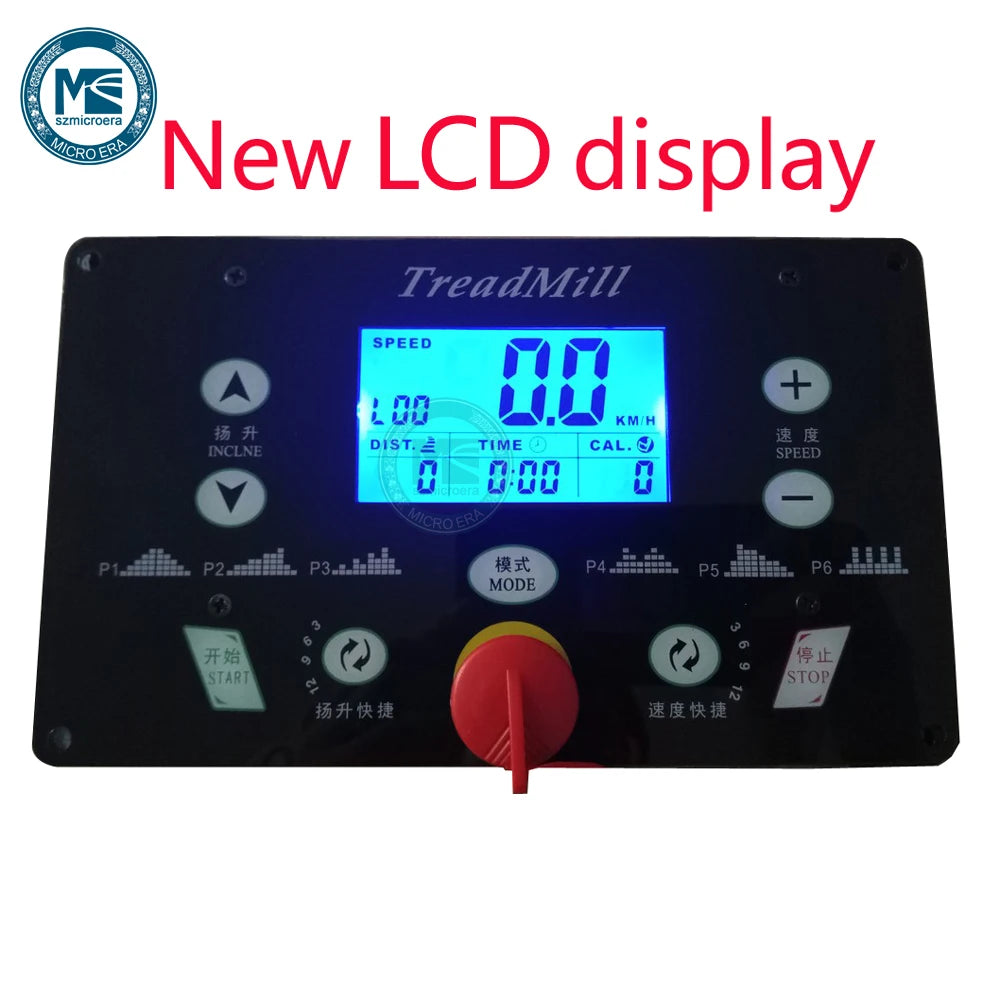

Display

1. LCD display

【Display:】 digital tube, LED display; touch button;

【Display content】: treadmill speed, exercise time, movement distance, calories and slope

【Key Function:】 start / stop key, mode setting key, speed plus or minus key, slope plus or minus key, speed shortcut key, slope shortcut key;

【Dashboard function:】 countdown mode, distance countdown mode, calorie countdown mode, motion built-in program;

【Installation:】 can be fixed with double-sided adhesive in the original shell surface; or embedded into the original treadmill instrument panel display window;

Instructions

1: press the start button, there are 3 seconds countdown, treadmill began to run;

2: press the stop button, treadmill slow down and stop

3: mode key: standby, press the mode key, enter the run mode settings;

4: After the treadmill is started, adjust the speed by speed addition or subtraction or speed shortcut keys
